Sooner or later, every SUV owner faces the question: how to remove the towbar? The reasons can be different — from selling a car to going abroad, where the rules regarding TSU (traction and coupling devices) are much stricter.

The experts of the Vnedorognik.ua online store have prepared a detailed guide for you, which will help you to dismantle the towbar yourself quickly and safely.

Why remove the tow bar?

Before reaching for the keys, it's important to understand the context. Todaytow barSUVs are often installed as an element of bumper protection, but there are cases when it is better to remove it:

• A trip to Europe. In many EU countries it is illegal to drive with a towbar unless a trailer is attached to it (especially if it covers the license plate).
• Off-road training. On difficult off-road, the "hook" can work as an anchor, reducing the descent angle.
• Maintenance. If there is corrosion on the frame, you need to remove the device for painting and anti-corrosion treatment.

Types of structures and complexity of works

The answer to the question "how to quickly remove the tow bar" depends on its type:

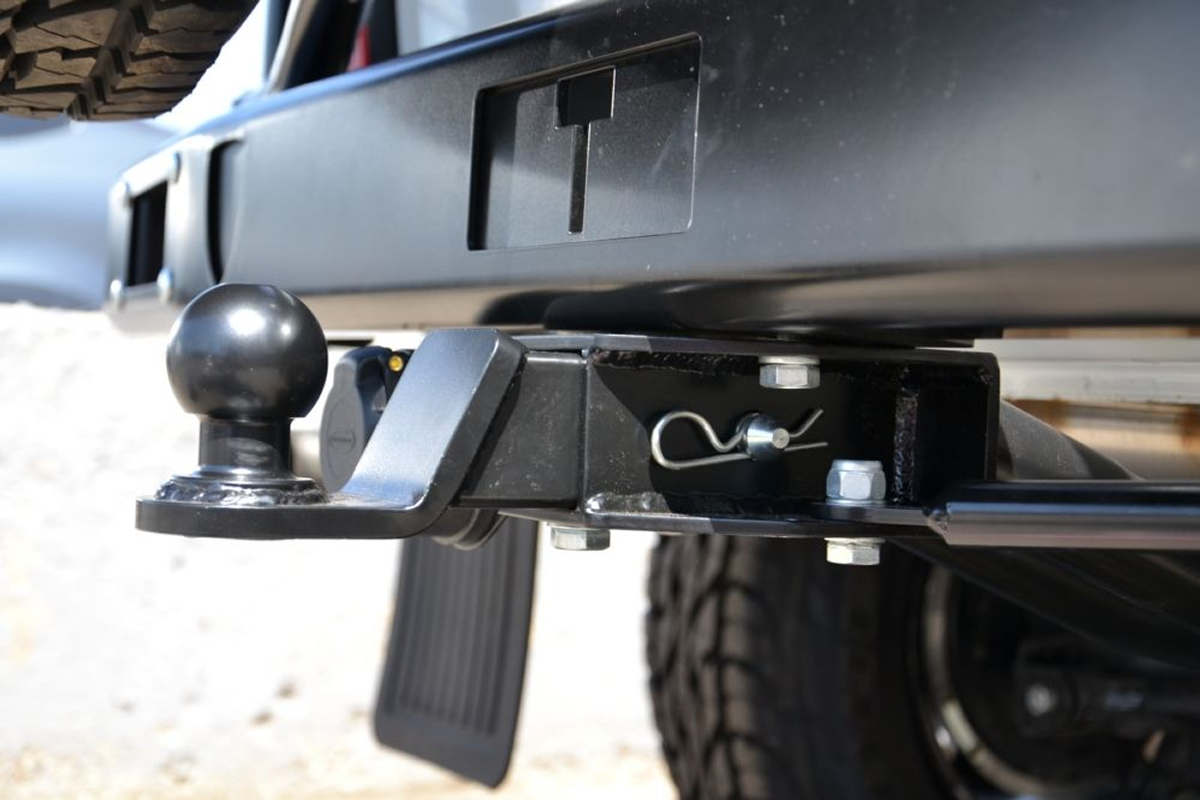

• Removable tow bar (on bolts). The most popular option. You only need to unscrew two or four bolts.

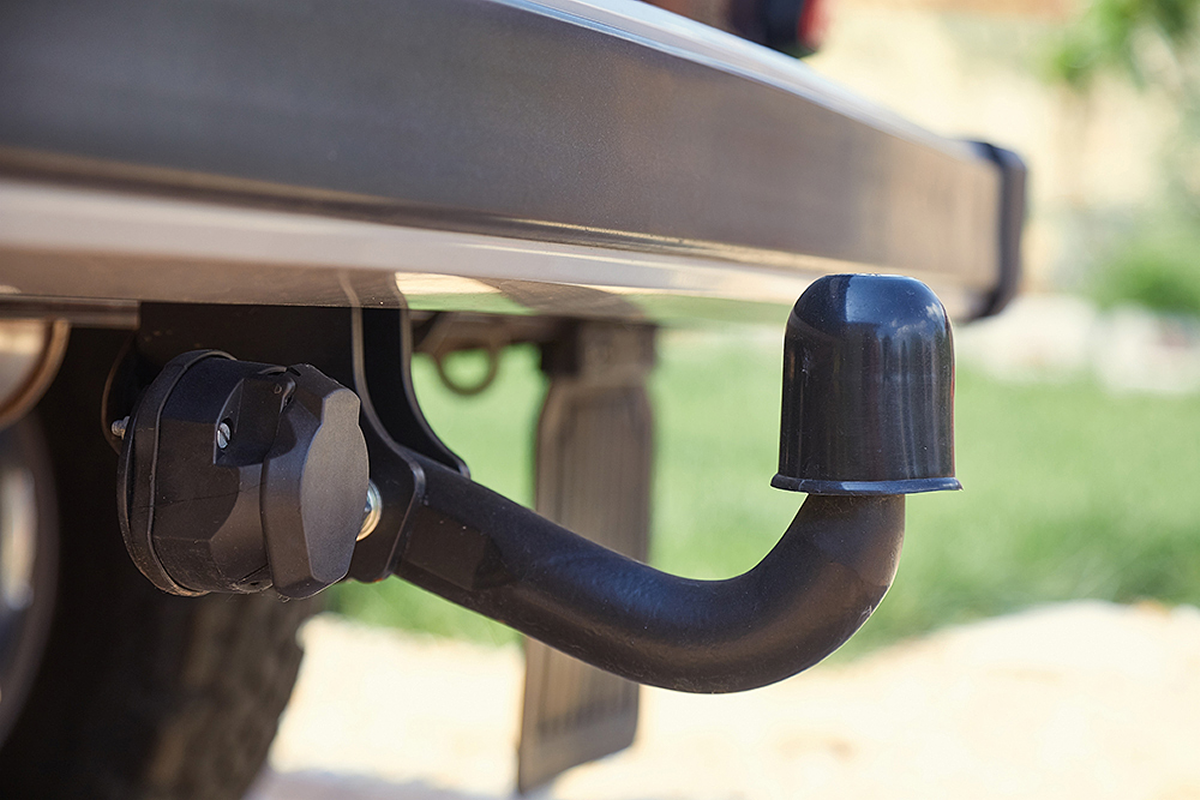

• Quick release tow bar (on the lock). Dismantles in seconds with a simple turn of a key or lever.
• Conditionally removable. Requires complete disassembly of the TSU subframe.

Step-by-step algorithm: how to remove the towbar with your own hands

If you do not have a quick release model, prepare a set of tools (17, 19, and sometimes 22 wrenches), WD-40 and follow the instructions:

1. Working with electricity

Before unscrewing the iron, you need to disconnect the towbar socket. If it is installed through a matching unit (Smart Connect), carefully disconnect the chips. If you plan to completely remove the electrical package of the towbar, be sure to insulate the loose wires to avoid short circuits.

2. Cleaning of fasteners

Since the towbar is under the bottom, the bolts are always clogged with dirt and rust. Fill them liberally with penetrating lubricant (WD-40) and wait 15-20 minutes. This is the main secret of how to remove the old towbar without breaking the bolts.

3. Dismantling the hook (balls)

If you need to remove only the "hook" itself, unscrew the side lock nuts. Hold one side with a key, and unscrew it with the other. If the bolts are "acidified", you can use an extension for the key (pipe).

4. Complete dismantling of the frame (subframe)

If the goal is to completely remove the TSU from the car, you will have to unscrew the attachment points to the frame spars. Be careful: the frame of the towbar is heavy, so it is better to do it with an assistant or to substitute a stop.

Is it necessary to remove the tow bar for inspection?

Currently installed in Ukrainetow barthe car does not need to make changes to the technical data sheet, if the design is provided by the manufacturer. However, if the device is self-made or covers the license plate, it may cause a stop by the police. It is recommended to remove the towbar before inspection if it significantly changes the dimensions of the car or interferes with the identification of license plates.

Tips from Vnedorognik.ua

• Lubricate the seat. If you have removed the quick-release hook, be sure to cover the opening with a plug to prevent sand from entering.
• Check the frame. After removal, inspect the attachment points for cracks in the spars.

If you have decided that your old TSU has served its purpose, and you plan to buy a new towbar for an SUV, visit our Vnedorognik.ua catalog. We have models for any task: from reinforced American "squares" to aesthetic quick-release systems.
