How to adjust the right?

Car radiodesigned to provide communication in places where there are problems with mobile network coverage. With its help, you can easily communicate with colleagues or other employees at a distance. But buying a walkie-talkie is half the battle, after that you need to set it up correctly. Poor tuning will result in interference, short range and prevent you from using the radio to its full potential.

How to set up a car radio station for truck drivers?

Car stationary stations differ from portable walkie-talkies by higher power. They are installed in the cabin and powered by the on-board network, providing communication over considerable distances.Such stations are used by truck driversand motorists who travel long distances, where there may be communication problems.

How to tune the radio to the wave of Ukrainian truck drivers?Channel 15 is used in the CIS countries. Depending on the manufacturer of the walkie-talkie, the letter designation of the grid on different models may differ. On some radio stations, the channel will be located in grid D, on others - C or M. Modulation of AM truckers.

Some models of stationary bus stations are configured for truckers grid out of the box. For others, the buyer has to figure out how to tune the radio to the truckers channel on his own. In short,to tune the wave is required:

• activate the required grid;
• use the channel switch to select 15;
• turn on the AM mode with the amplitude switch.

If the walkie-talkie makes noise or pulls poorly, you need to correctly install and adjust the antenna. A KCB meter is used for this. The antenna configuration should be performed in places where there are no concrete and metal obstacles nearby.

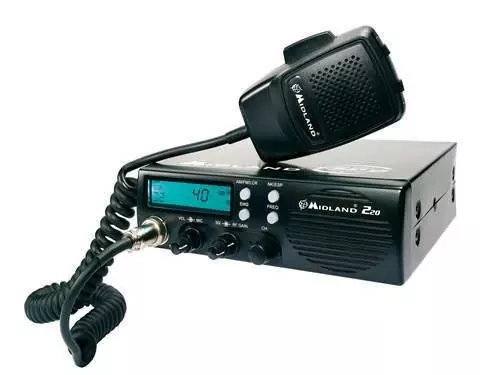

Automobile CB radios

Rules for installing an antenna for a radio station

• It is necessary to strengthen only on a metal surface (with mass).
• Install on the upper part of the body, preferably on the roof, the higher the antenna, the stronger the signal.
• Place at a distance of more than 0.5 meters from parallel metal surfaces.
• The antenna cannot be cut.

After installation, be sure to configure the radio station. Without it, the signal will be much worse.

Setting up the car antenna

The best solution would be to use a professional antenna analyzer, but as an alternative, you need to use a SWR meter. With its help, you can adjust the minimum coefficient of the standing wave. A ratio of less than 1.5 is considered optimal. The higher you have this indicator, the greater the loss in signal strength.

Therefore, we choose a flat surface without obstacles nearby (ideally, outside the city) and other similar antennas. Connect the SWR meter as shown in the diagram.

After that, we turn off and check the operation of the radio station.

Radio antennas

How to set up a portable walkie-talkie?

Portable radiosdesigned to provide communication over short distances. They are perfect for patrolling, travelers and in work where operational communication is required. For the most part, portable radios work in the civil range, which means that they do not require permits.

Now, let's take a closer look at how to configure portable walkie-talkies on one frequency:

• the same subcodes and numbers must be set on a set of devices, this is done using standard control buttons;
• if everything is done correctly, it will be enough to press and hold the conversation button for communication;
• if you release the button, the device will switch to signal reception mode.

An individual signal or call sign is an important element in the setting. It can be provided as an alphanumeric code with a unique value. The specified instruction is universal, suitable for solving questions about how to set up a Motorola, Alan, Stabia, etc. radio.

Before using a specific model, it is recommended to carefully read the operating manual, as it may contain information on setting up non-standard models. It comes with the devices and is also presented as a PDF on the page of each individual model.

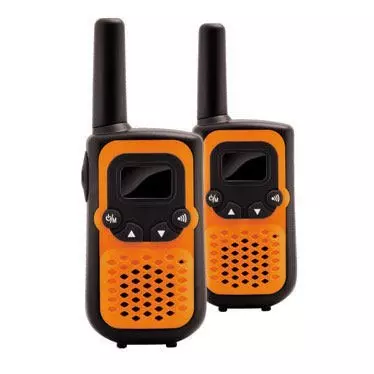

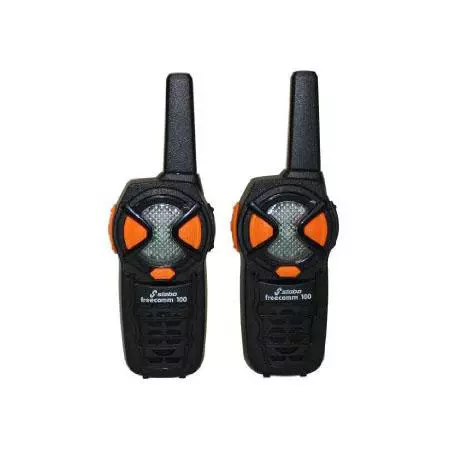

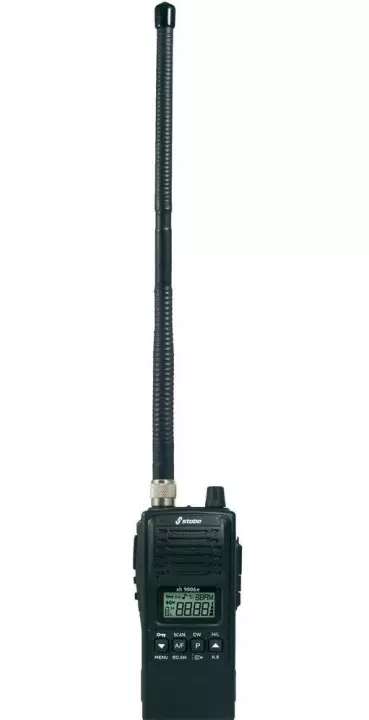

Portable radios

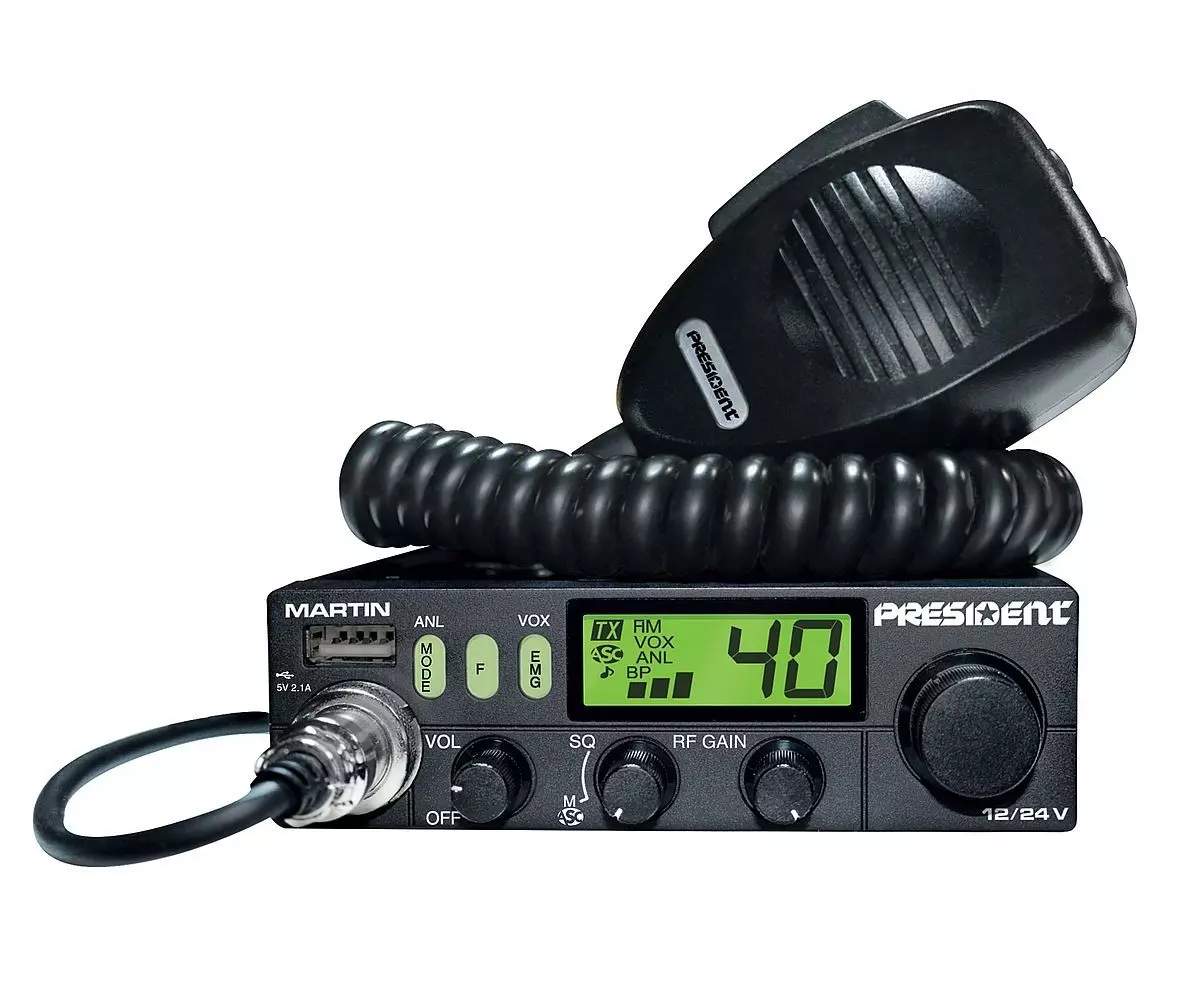

How to set up a President car radio for a van?

Let's consider how to configurethe President is rightto the truckers channel and adjust the antenna for better reception:

• Install the antenna on the roof. Remove the protective cap and tighten the adjustment screw as far as it will go.
• Connect a KCB meter between the antenna and the station.
• Turn on the radio and switch to channel 15 and AM modulation.
• We press the tangent and bring the arrow to the SET value using the adjustment knob.
• If the value is higher than 1.5, then on the antenna we adjust (loosen) the adjustment screw to readings in the range from 1 to 1.5 on the tuning device.
• After that, fix the screw with a lock nut, and put the cap on the antenna.
• We measure the coefficient of the KCB meter again and turn off the device. Setup is complete.

It is not difficult to understand how to set up and how to use the walkie-talkie. It is enough to go through the procedure from beginning to end once.
