Dragon Winch Dwt 30000 HD 24 v winch
0.0
no reviews
Code: 009357
Official representative
91419₴
Ready to ship
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | DWT30000 |
| Бренд | Dragon Winch |
| Тягове зусилля | 13 ton |
| Довжина троса | 30 m |
| Напруга, вольтаж | 24 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Related products

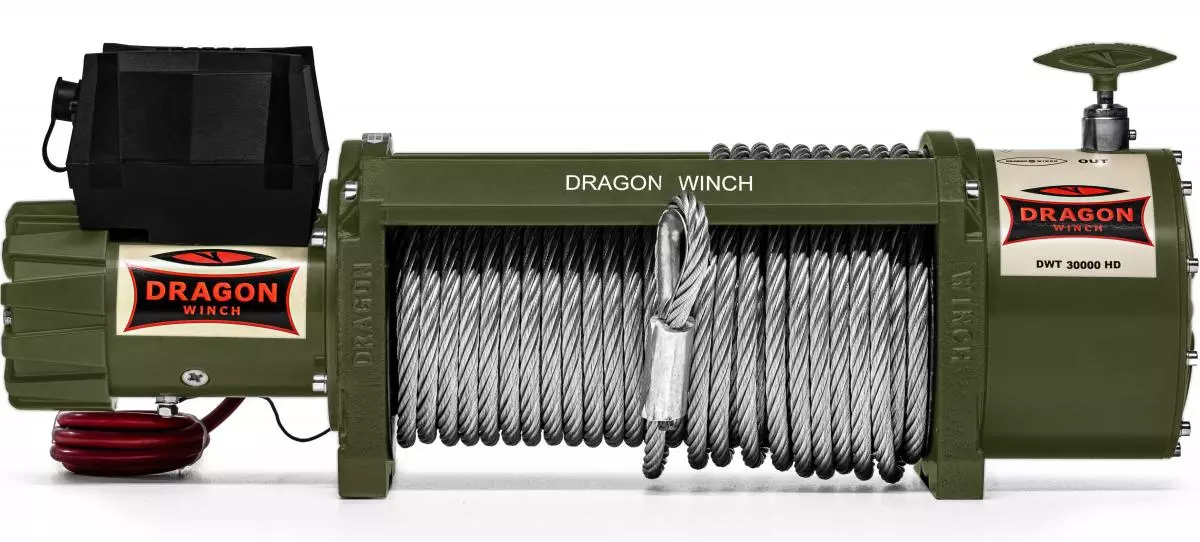

Dragon Winch DWT 30000 HD tow truck winch
The manufacturer of traction devices Dragon Winch has developed a series of Truck winches specifically for installation on tow trucks, trucks and other special equipment. The DWT 30000 HD model has the highest maximum load among other mechanisms in the line - up to 13.5 tons.
The 10.5 hp electric motor is powered by a 24 V battery. The device is equipped with a steel cable that reaches 30 meters in length.

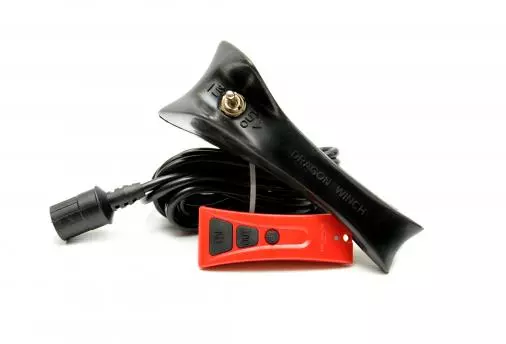

The set includes 2 remote controls: a wired remote control and a radio remote control. In case of a motor failure, a dynamic brake is activated, which securely fixes the object.
With a maximum load of 13605 kg, the cable winding speed is 1 m/min. The lower the load, the higher the speed.
The online store Vnedorognik.ua offers a wide range of winches for tow trucks and rescue vehicles of well-known brands.
Winding speed on the DWT 30000 HD winch and power (first turn of the cable on the drum)
| Load of the winch | kg | 0 | 3400 | 6800 | 13605 |
| Speed of the machine | m / min | 2,62 | 2,22 | 1,8 | 1 |
| Current 24 volts | ampere | 45 | 152 | 313 | 414 |
Pulling force of the DWT 30000 HD depending on the rope strand
| Turn of the rope | 1 | 2 | 3 | |
| Load of the rope | kg | 13605 | 10830 | 9550 |
| Cable length on the drum | м | 8,6 | 18,8 | 30 |

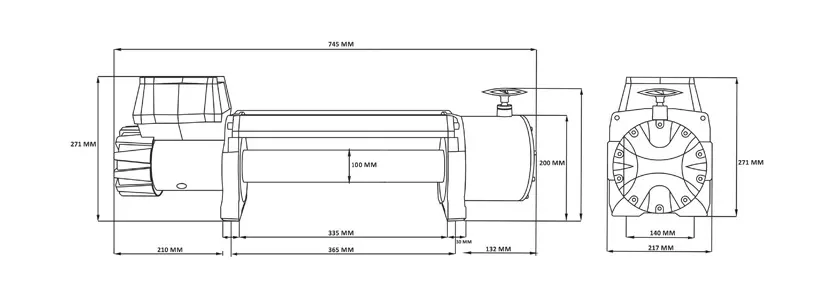

Dimensions of the DWT 30000 HD winch, mm:
| A | Length | 745 |
| B | Width | 217 |
| C | Height from the foundation to the highest point of the winch | 271 |
| D | Distance between holes (length) | 365 |
| E | Distance between holes (width) | 164 |
| F | Drum length (internal) | 335 |
| G | Drum diameter | 100 |
| H | Length of the motor | 210 |
| I | Length of the transmission | 132 |
| J | Height from the foundation to the surface of the gear edge | 200 |
| K | Thickness of the leg | 30 |
