Winch Automobile Dragon Winch Dwh 15000 HD
40590₴
36934₴
Home / Catalog / Exterior / Winch electric win on the Dragon Winch DWT DRAGON WINCH
Winch electric win on the Dragon Winch DWT DRAGON WINCH
5.0
1 review
Code: 008890
Official representative
61773₴
Out of stock
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dwt15000hdl |
| Бренд | Dragon Winch |
| Тягове зусилля | 7 ton |
| Довжина троса | 60 m |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Dragon Winch DWT 15000 HDL tow truck winch
For efficient tow truck operation, you need a reliable traction device - the Dragon Winch Truck Series winch with an extended drum. It is designed for systematic loading and can accommodate a longer cable than the standard model.
The 9 hp electric motor is powered by a 12/24 V car battery and can withstand 6800 kg of maximum load. A three-stage planetary gearbox ensures smooth movement.
The drum is equipped with a 60-meter steel cable for long-distance operation. You don't have to worry about the rope getting tangled, because roller guides are responsible for even winding.
It is controlled by the remote control. If the engine shuts down, a dynamic brake will be activated to secure the load.
Also in our online store you can buy a Dragon Winch DWH 15000 HD winch with a standard drum length and the same pulling force.
Winding speed and power (first turn of the cable on the drum)
| Load level | kg | 0 | 4532 | 5443 | 6803 |
| Broaching speed | m / min | 6,5 | 2,5 | 1,9 | 1,3 |
| Voltage, 12 V | А | 70 | 280 | 360 | 420 |
| Voltage, 24 V | А | 30 | 180 | 220 | 250 |
Pulling force depending on the rope turn
| Turn of the rope | 1 | 2 | 3 | 4 | |
| Load capacity | kg | 6803 | 5113 | 4581 | 3955 |
| Cable length on the drum | м | 12 | 26 | 42 | 60 |

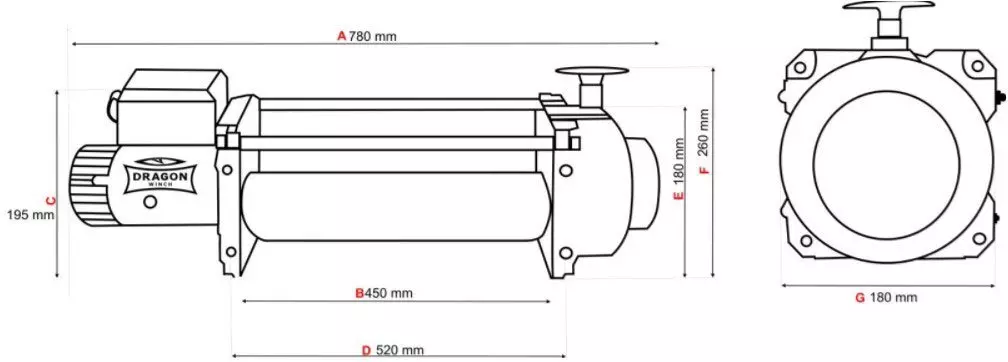

Winch dimensions (mm)
| A | Length | 780 |
| B | Internal length of the drum | 450 |
| C | Height from base to highest point | 195 |
| D | Distance between mounting holes (length) | 520 |
| E | Height from the base to the surface of the transmission edge | 180 |
| F | Height from the base to the surface of the gear lever edge | 260 |
| G | The width of the lever | 180 |
