Winch electrical on the Dragon Winch Dwt 14000 hd 12
5.0
1 review
Code: 008861
Official representative
26176₴
Ready to ship
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dwt14000hd12v |
| Бренд | Dragon Winch |
| Тягове зусилля | 6 ton |
| Довжина троса | 20 m |
| Напруга, вольтаж | 12 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |

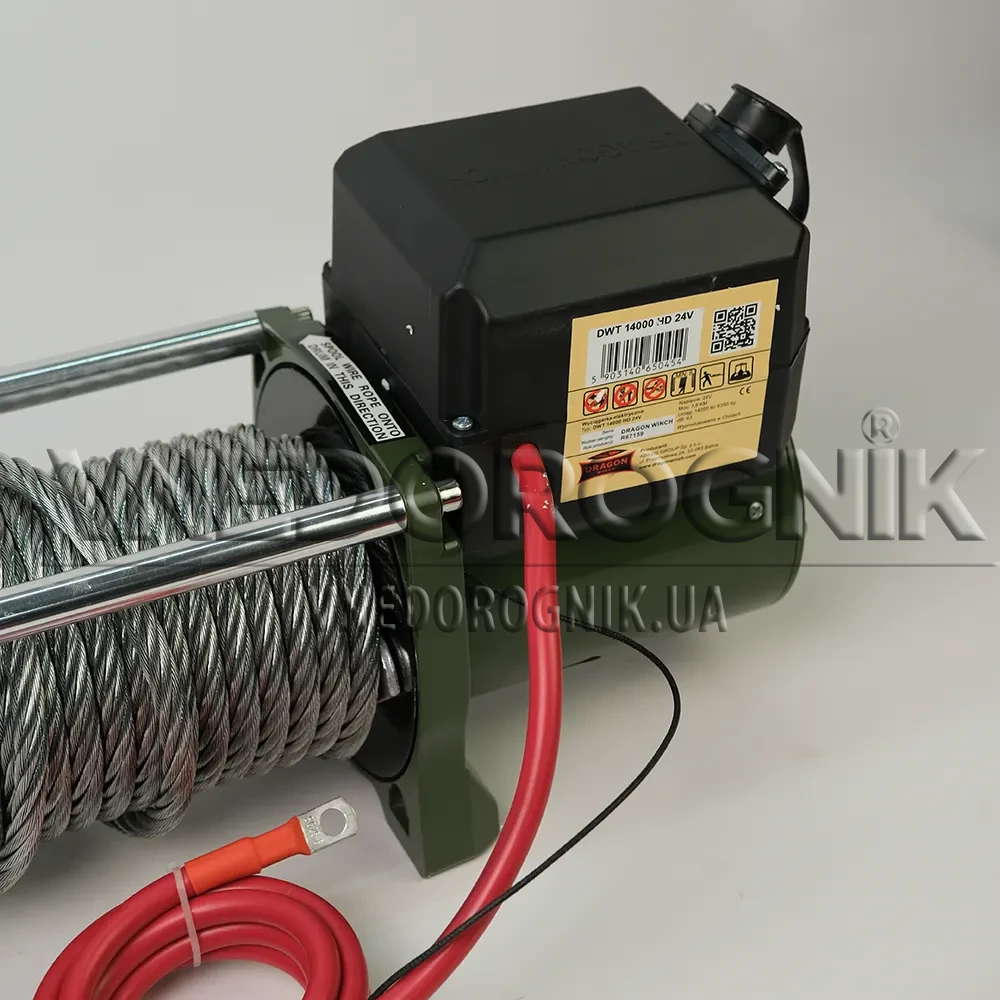

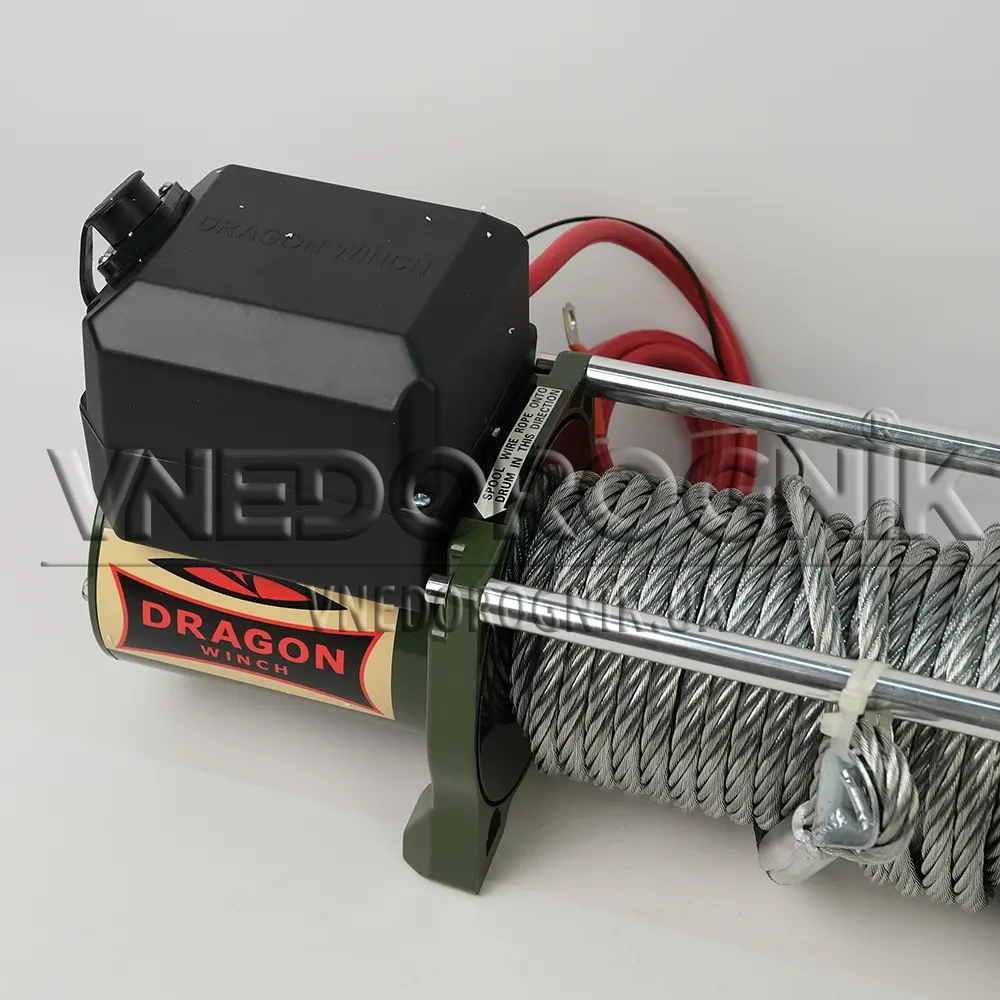

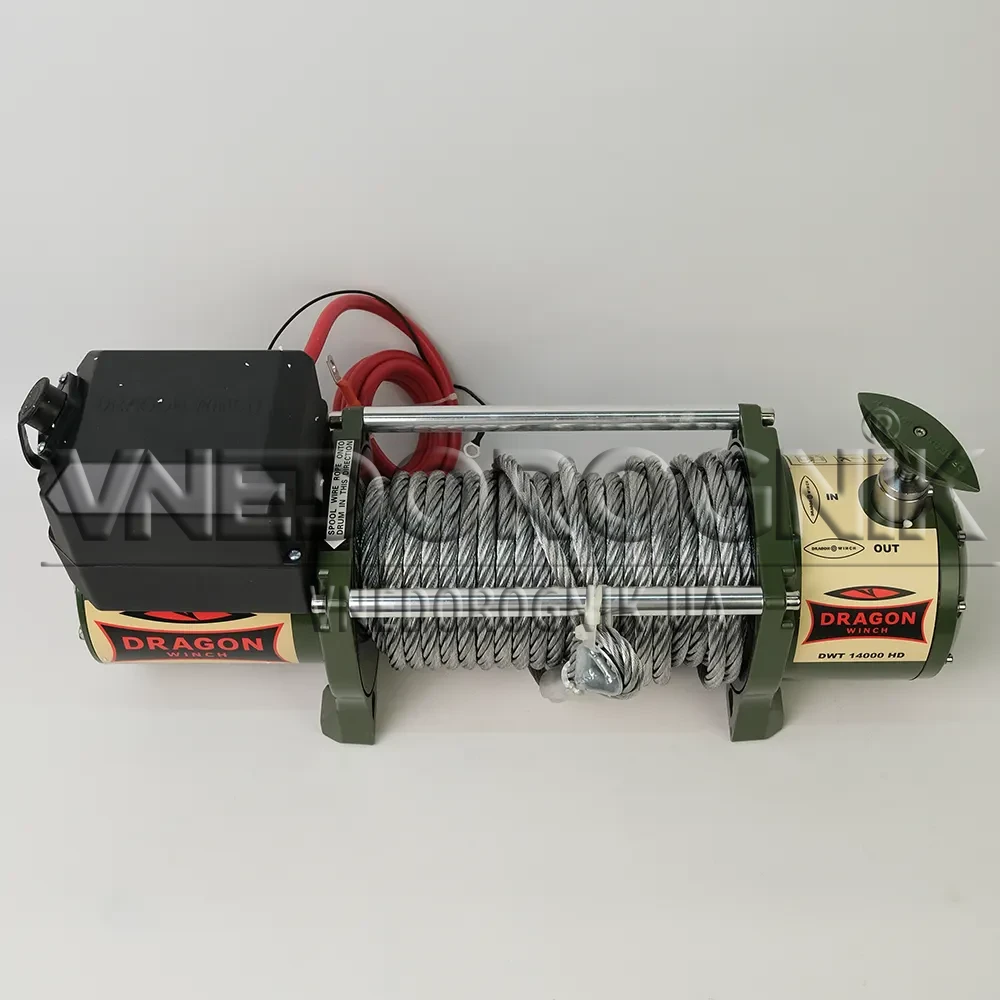

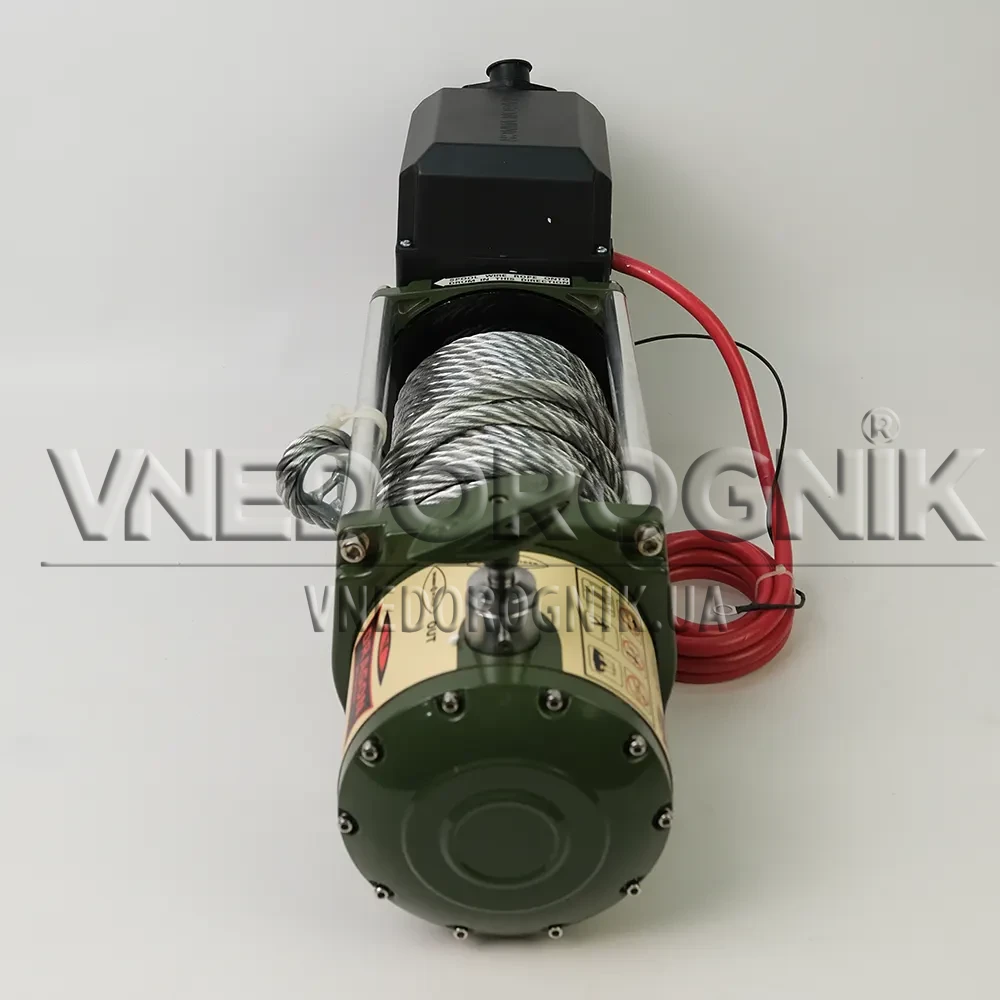

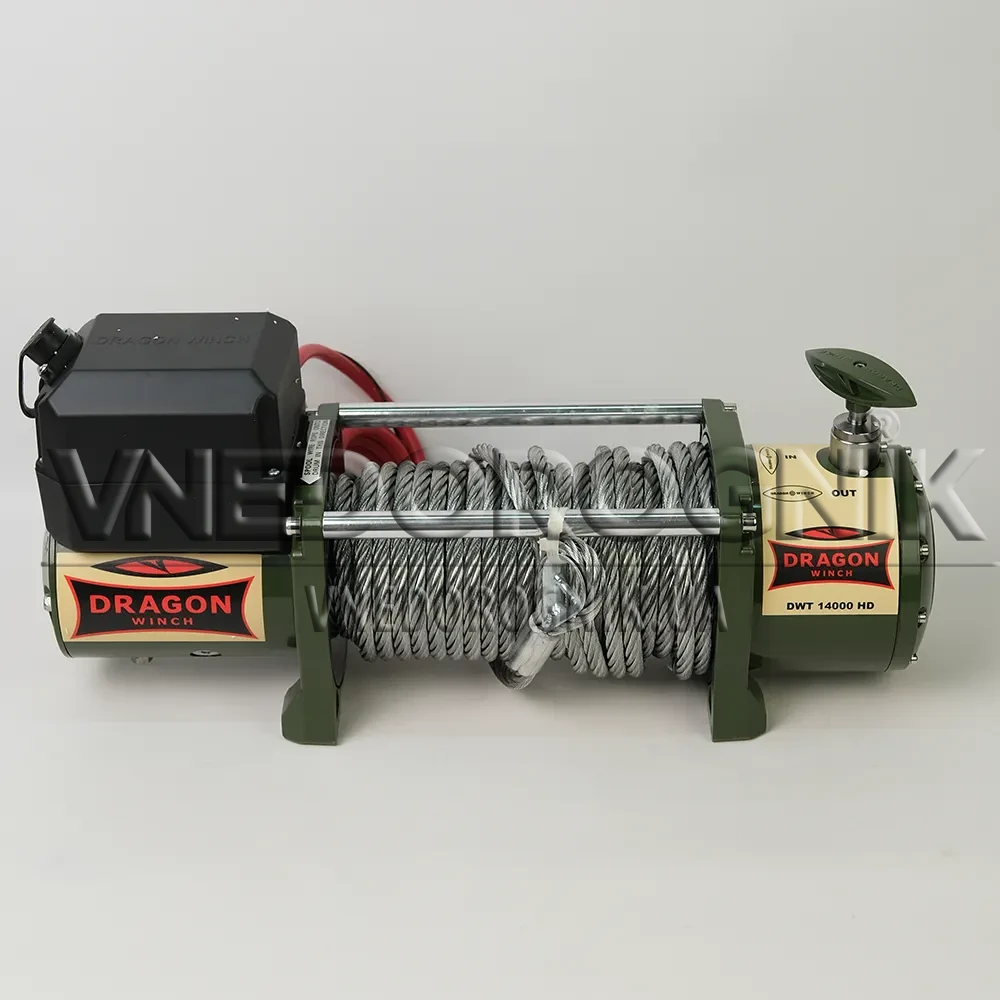

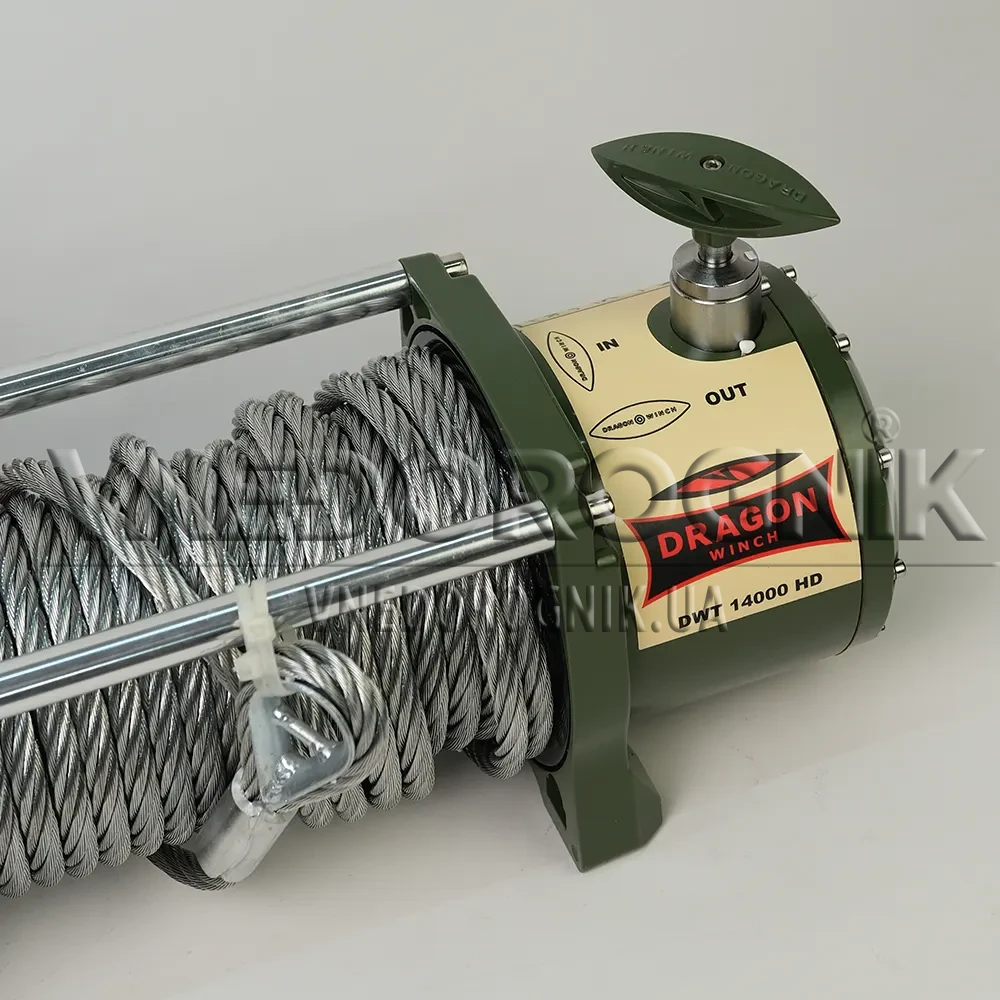

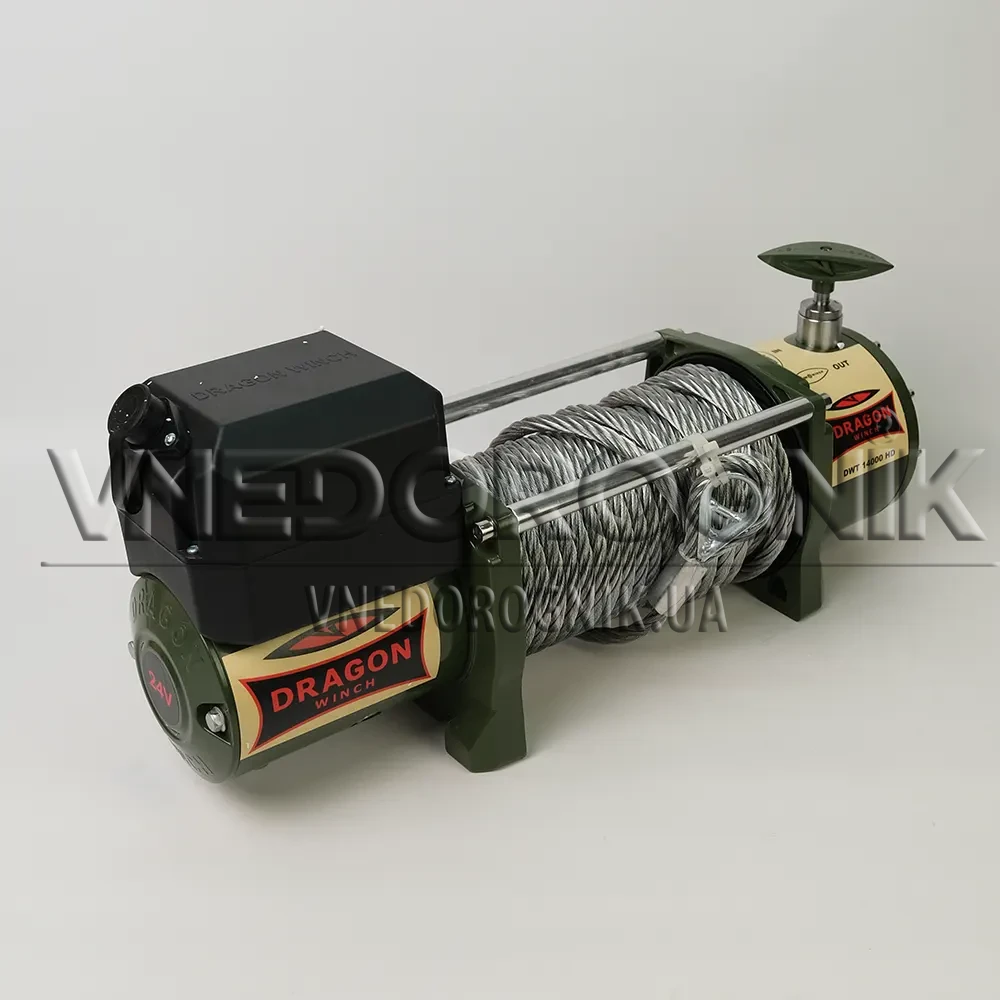

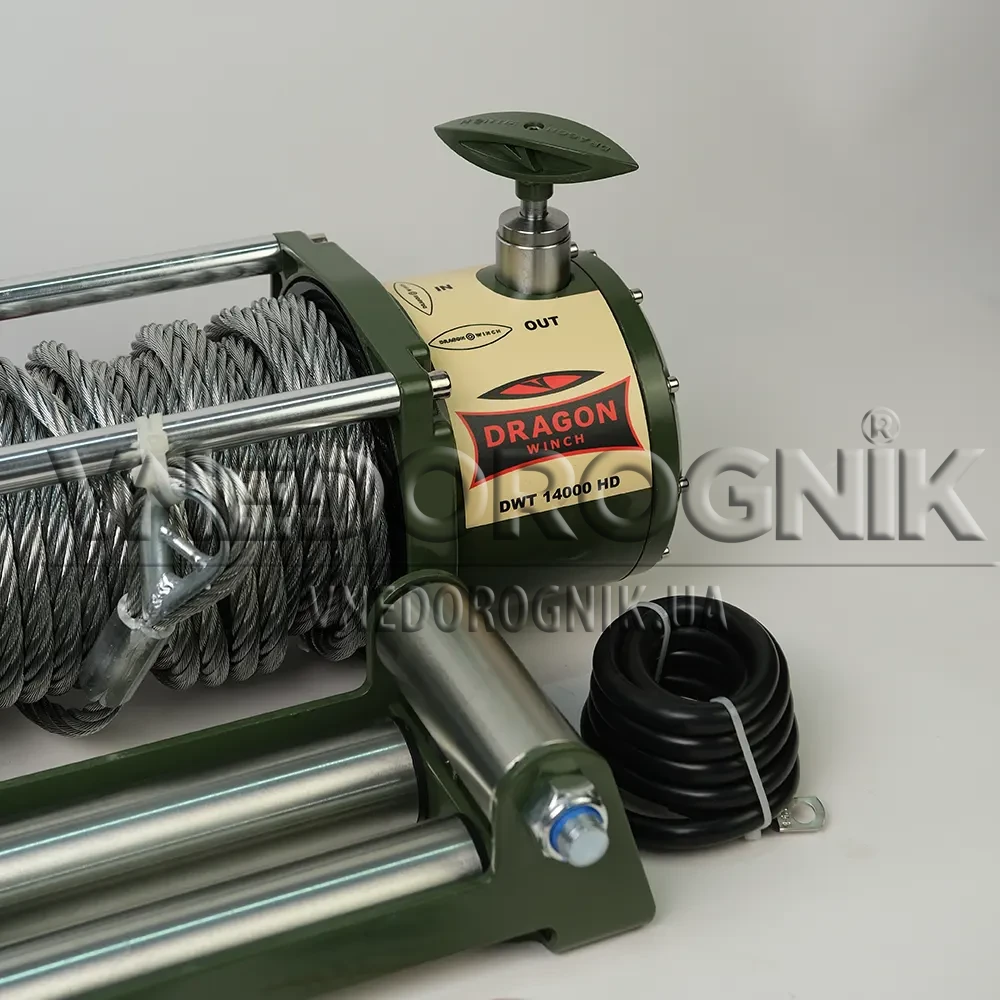

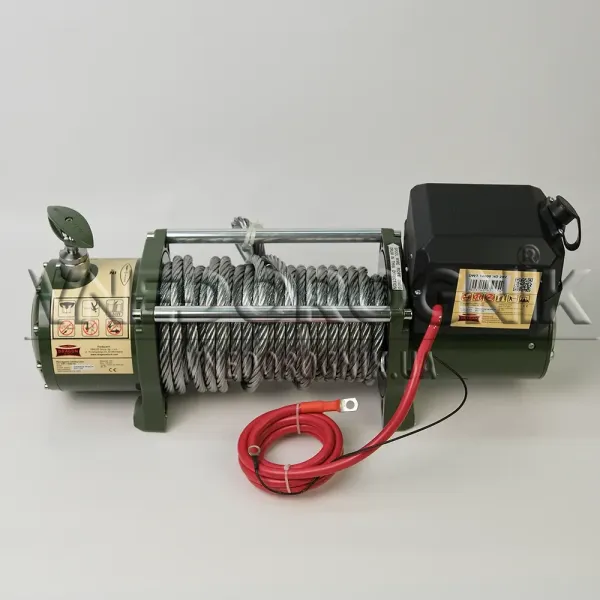

Dragon Winch DWT 14000 HD tow truck winch with electric drive
The Dragon Winch winch is designed for professional use on rescue vehicles, tow trucks and other special equipment. The equipment can withstand a pulling force of up to 6350 kg and is powered by a 12 V battery.
The 7.8 horsepower electric motor winds the cable at a speed of 1.1 meters per minute at maximum load. You don't have to worry about the safety of the device - when the motor is turned off, a dynamic brake is activated, which reliably fixes the load.

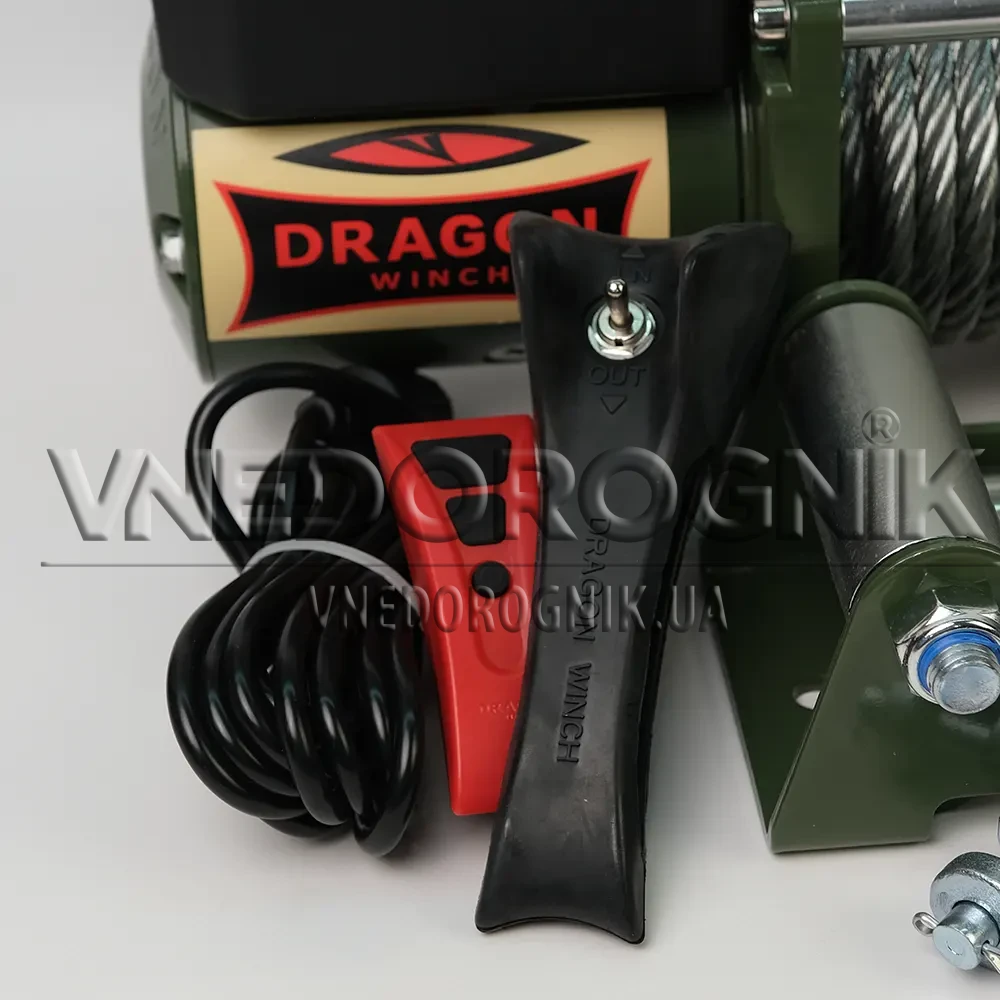

It is very convenient to control the winch on a tow truck, this is done with the help of a remote control (radio or wired). The 20 meter long cable is wound evenly on the drum thanks to roller guides.

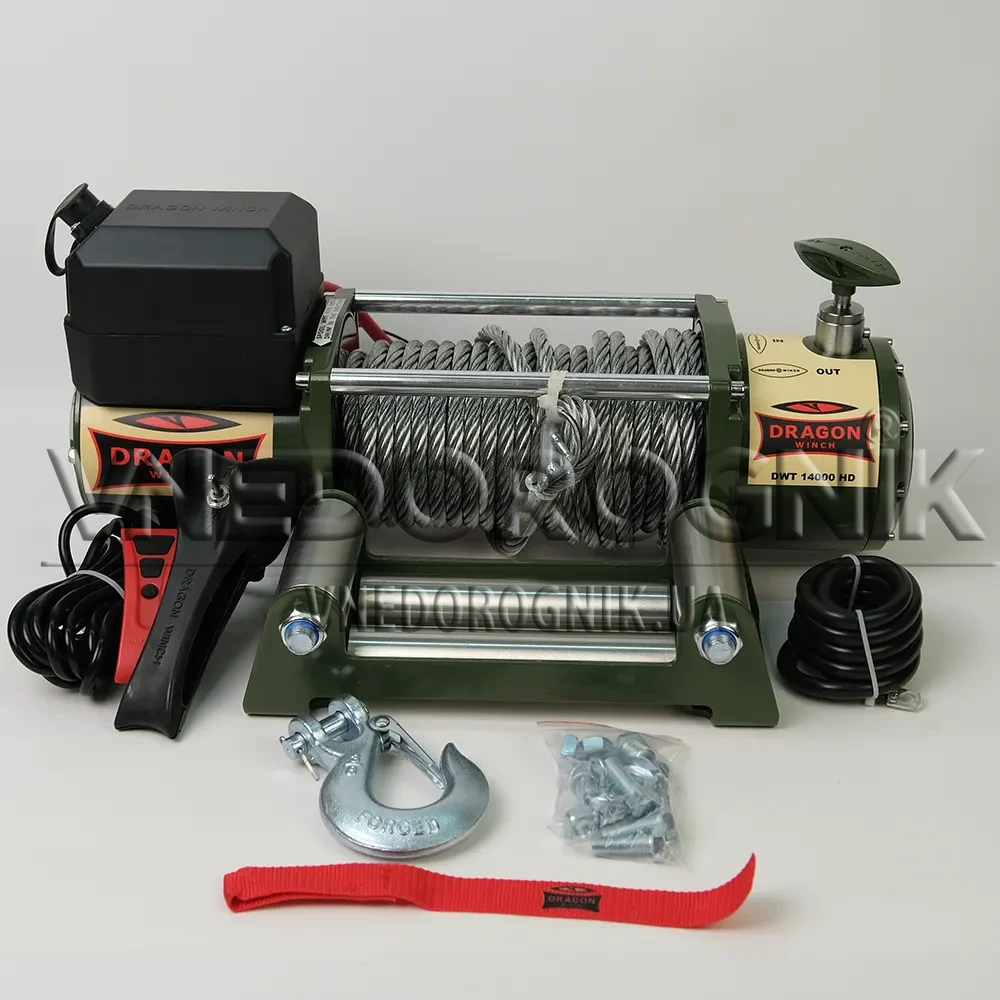

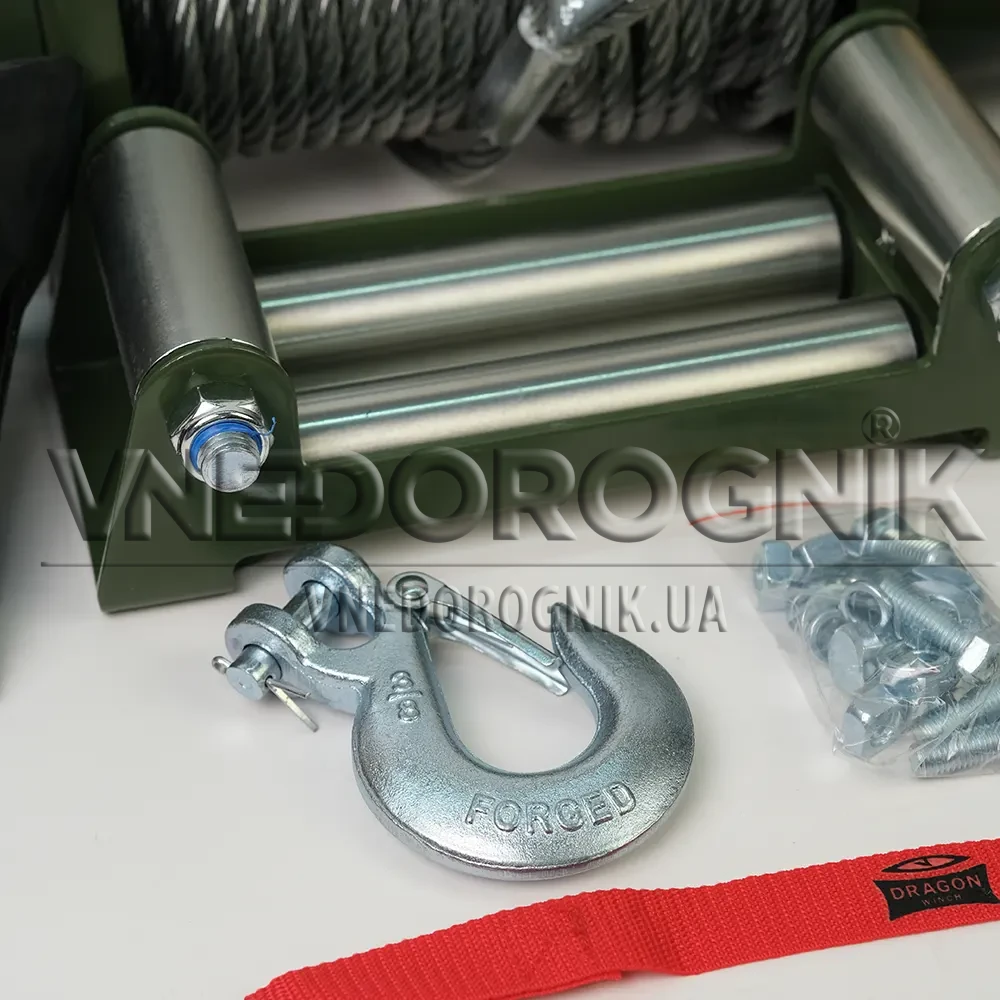

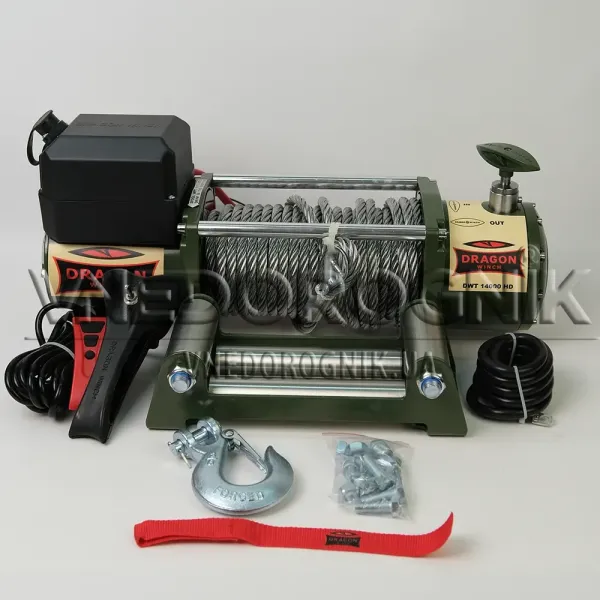

The set includes:
- winch;

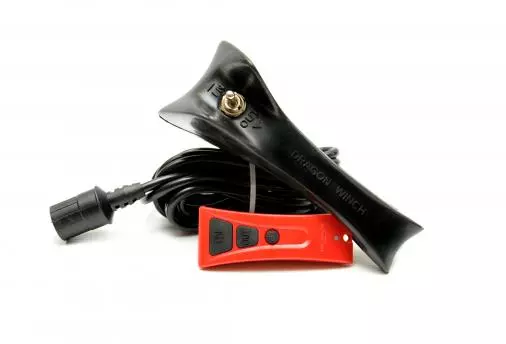

- 2 remote controls;
- metal cable;
- control unit;
- guide rollers;

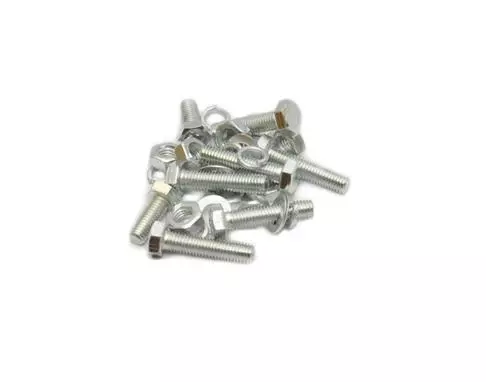

- a set of mounting screws;

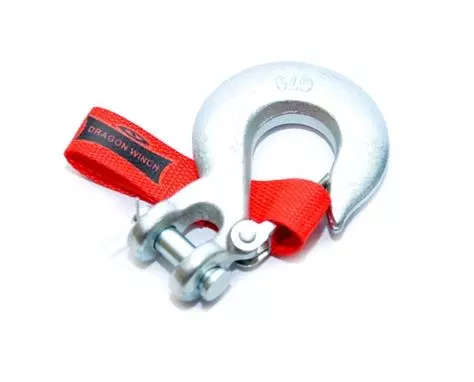

- hook.
Winding speed and power (first turn of the cable on the drum)
| Load level | kg | 0 | 2721 | 5443 | 6350 |
| Broaching speed | m / min | 6 | 4,5 | 2,9 | 1,1 |
| Voltage, 12 V | А | 61 | 206 | 359 | 481 |
| Voltage, 24 V | А | 38 | 103 | 207 | 240 |
Pulling force depending on the wire rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | |
| Pulling force | kg | 6350 | 5016 | 4318 | 3746 |
| Cable length on the drum | м | 4,8 | 10,8 | 17,5 | 20 |

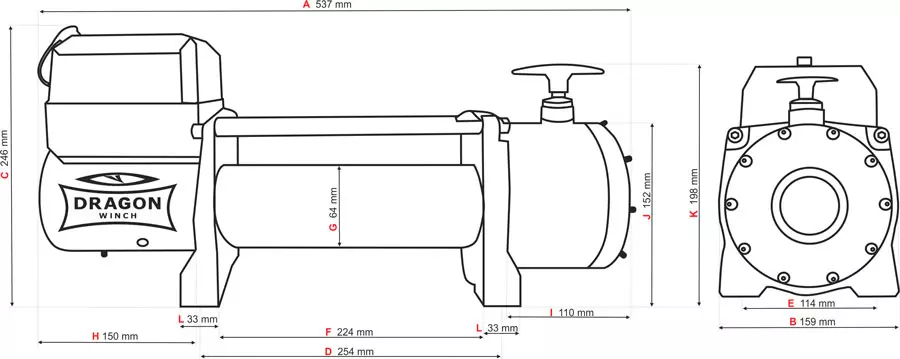

Winch dimensions (mm)
Instructions
Installation Guide
