Winch Automobile Electric Dragon Winch Dwm 12000 HD 12 in a rope 30 m
0.0
no reviews
Code: 009348
Official representative
20172₴
Discount -22%
Standard price 25836 ₴
Ready to ship
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dwm12000hd12v30 |
| Бренд | Dragon Winch |
| Тягове зусилля | 5 t |
| Довжина троса | 30 m |
| Напруга, вольтаж | 12 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Car winch Dragon Winch DWM 12000 HD 12 V cable 30 meters
The Dragon Winch car electric winch is a powerful equipment that is used to tow a vehicle and horizontally move objects of different shapes and weights. Its effectiveness is expressed by positive ratings from off-road travelers, off-road athletes, as well as employees of tow trucks, the Ministry of Emergencies and utilities.

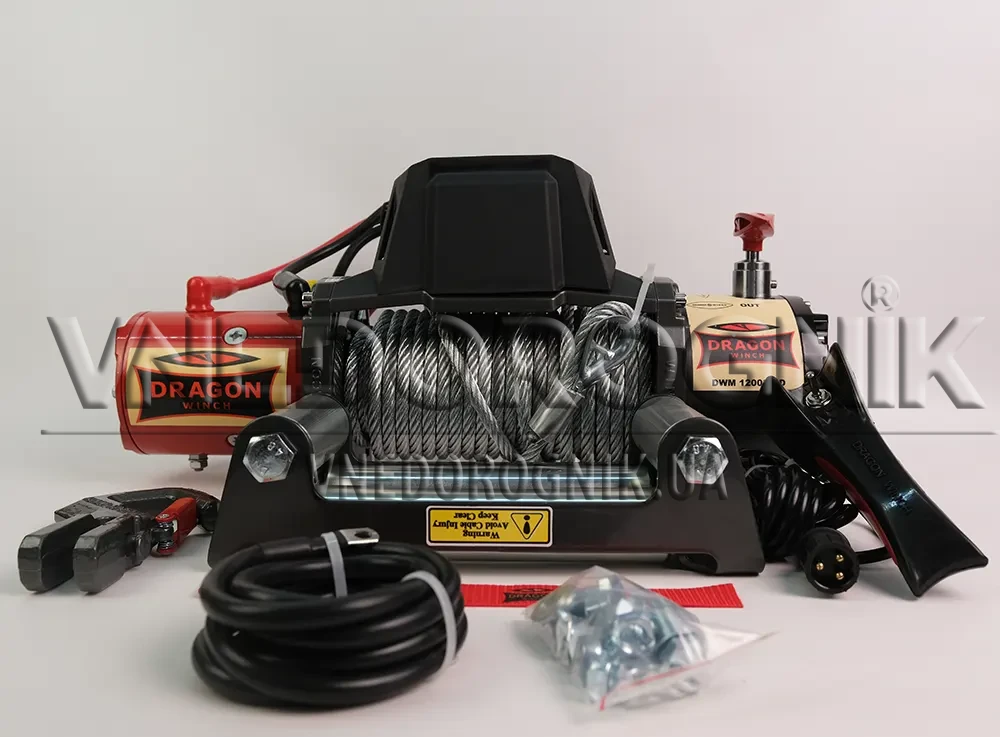

It is equipped with a significantly productive engine with a power of 6.8 hp. It is capable of developing a pulling force of 5443 kg. The winch includes a robust housing with a 30-meter cable, a cable drum, an electric drive and a gearbox.
The winch is activated when connected to a 12 V battery. The winch can be mounted not only inside the car - any surface with a stable support is suitable. The winch can be controlled remotely via the remote control.

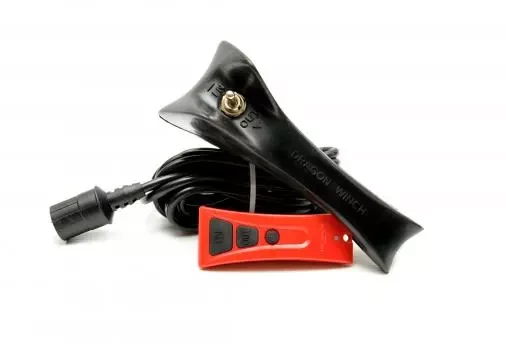

Important! The radio remote control is built into the wired remote control and can be removed by pressing on one of the sides.
Speed of cable laying on the drum and power (first turn)
| Load level | kg | 0 | 1814 | 3629 | 5443 |
| Broaching speed | m / min | 5,9 | 4,4 | 2,8 | 0,9 |
| Voltage, 12 V | А | 58 | 158 | 314 | 415 |
| Voltage, 24 V | А | 35 | 89 | 178 | 225 |
Pulling force depending on the rope turn
| Turn of the rope | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 5443 | 4299 | 3701 | 3211 | 2667 |
| Cable length on the drum | м | 5,3 | 11,5 | 18,6 | 27,3 | 30,0 |

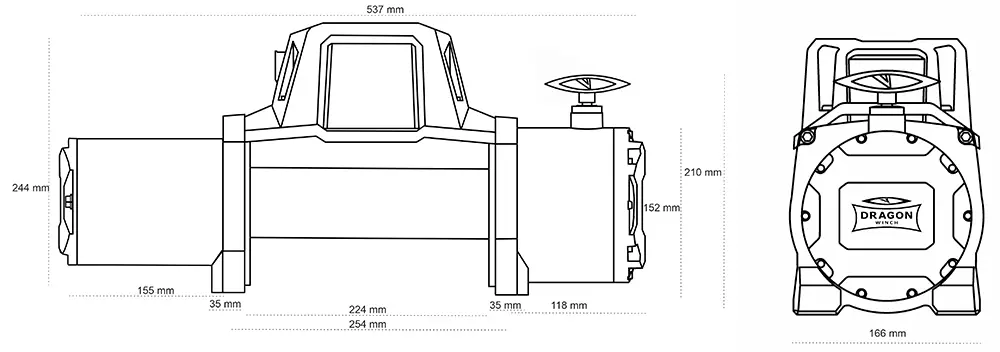

Overall dimensions of the winch (mm)
| A | Length (total) | 537 |
| B | Width (total) | 166 |
| C | Height from base to highest point | 244 |
| D | Distance between mounting holes (length) | 254 |
| E | Distance between mounting holes (width) | 114 |
| F | Internal length of the drum | 224 |
| G | Drum (diameter) | 64 |
| H | Length of the motor | 155 |
| I | Length of the transmission | 118 |
| J | Height from the base to the surface of the gear edge | 152 |
| K | Height from base to surface of gear lever edge | 210 |
| L | Thickness of the leg | 35 |
