Winch Automobile Electric Dragon Winch Dwm 12000 HD 12 in a rope 20 m
0.0
no reviews
Code: 009351
Official representative
20172₴
Discount -13%
Standard price 23192 ₴
Ready to ship
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dwm12000hd12v20 |
| Бренд | Dragon Winch |
| Тягове зусилля | 5 t |
| Трос | Стальной |
Car winch Dragon Winch DWM 12000 HD 12 V cable 20 meters
Cable laying speed on the drum and power (first turn)
| The level of load | kg | 0 | 1814 | 3629 | 5443 |
| Broaching speed | m / min | 5,9 | 4,4 | 2,8 | 0,9 |
| Voltage, 12 V | А | 58 | 158 | 314 | 415 |
| Voltage, 24 V | А | 35 | 89 | 178 | 225 |
Pulling force depending on the rope turn
| Turn of the rope | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 5443 | 4299 | 3701 | 3211 | 2667 |
| Cable length on the drum | м | 5,3 | 11,5 | 18,6 | 27,3 | 30,0 |

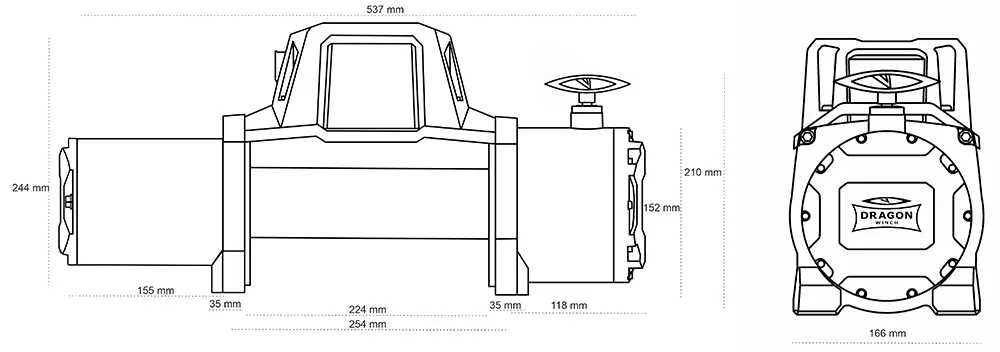

Overall dimensions of the winch (mm)
| A | Length (total) | 537 |
| B | Width (total) | 166 |
| C | Height from base to highest point | 244 |
| D | Distance between mounting holes (length) | 254 |
| E | Distance between mounting holes (width) | 114 |
| F | Internal length of the drum | 224 |
| G | Drum (diameter) | 64 |
| H | Length of the motor | 155 |
| I | Length of the transmission | 118 |
| J | Height from the base to the surface of the gear edge | 152 |
| K | Height from base to surface of gear lever edge | 210 |
| L | Thickness of the leg | 35 |
Instructions
| Installation Guide and Operation of Winner |
Warranty
- 100% warranty service
- Warranty period for each product is individual
Exchange and return
- Within 14 days: new, unused products of proper quality
