Winner Electric DWH 9000 HD SYNTHETIC
0.0
no reviews
Code: 008881
Official representative
779€
Discount -9%
Standard price 856 €
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dwh9000hds |
| Бренд | Dragon Winch |
| Тягове зусилля | 4 t |
| Довжина троса | 30 m |
| Напруга, вольтаж | 12 |
| Трос | Синтетический |

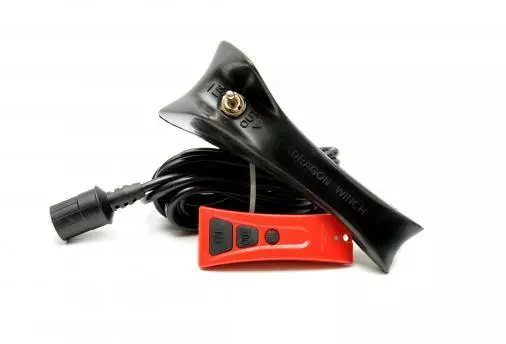

| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Electric winch DWH 9000 HD synthetic
The Dragon Winch electric car winch is a powerful unit whose task is to tow a vehicle and horizontal movement of objects of different sizes and weights. Its effectiveness is positively assessed by fans of traveling in off-road areas, participants in off-road competitions, as well as employees of utilities, tow trucks and the Ministry of Emergencies.
There is a fairly productive engine with a power of 9 hp. This is enough to develop a pull of 4 tons on the first turn. The winch includes a robust housing with a gearbox, an electric drive, a 30-meter synthetic cable and a cable drum.
The winch is activated when connected to a 12 V battery. Its attachment is not limited to a place inside the car - any stable surface will do. It can also be controlled from a distance via the remote control.
Speed of cable laying on the drum and power (first turn)
| Load level | kg | 0 | 1814 | 3629 | 4082 |
| Broaching speed | m/min | 10,9 | 8,8 | 6,2 | 5,4 |
| Voltage, 12 V | А | 70 | 211 | 422 | 480 |
Pulling force depending on the wire rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | |
| Pulling force | kg | 4082 | 3225 | 2776 |
2408 |
| Cable length on the drum | м | 6,2 | 13,8 | 22 | 28 |

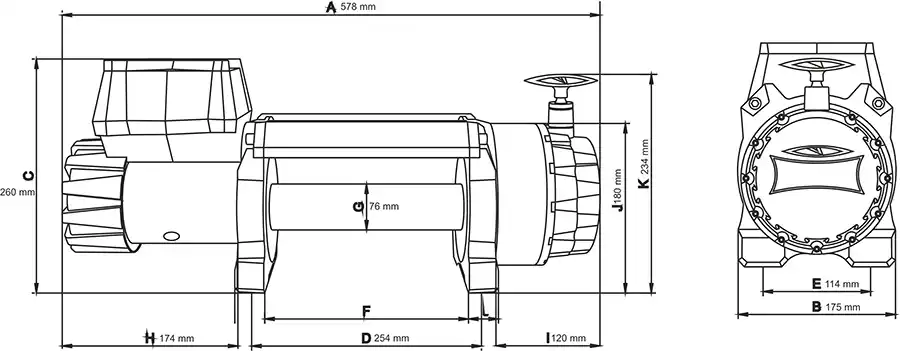

Overall dimensions of the winch (mm)
| A | Length (total) | 578 |
| B | Width (total) | 175 |
| С | Height from base to top point | 260 |
| D | Distance between mounting holes (length) | 254 |
| E | Distance between mounting holes (width) | 114 |
| F | Internal length of the drum | 221 |
| G | Drum (diameter) | 76 |
| G | Drum (diameter) | 76 |
| H | Length of the motor | 174 |
| I | Length of the transmission | 120 |
| J | Height from the base to the surface of the gear edge | 180 |
| K | Height from the base to the surface of the gear lever edge | 234 |
| L | Leg thickness | 33 |
