Dragon Winch dwh 3000 HD
0.0
no reviews
Code: 008883
Official representative
8366₴
Discount -9%
Standard price 9187 ₴
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dwh3000hd |
| Бренд | Dragon Winch |
| Тягове зусилля | 1 t |
| Довжина троса | 15 m |
| Напруга, вольтаж | 12 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conducted |
| Привід лебідки | Electric |

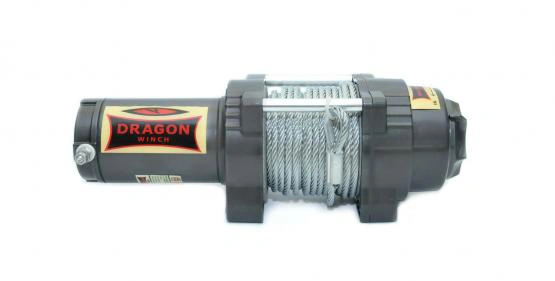

Electric winch for ATV Dragon Winch DWH 3000 HD
Dragon Winch Highlander (DWH) serieswinches are part of the premium segment of traction devices. They are characterized by high performance and high speed, which will come in handy during off-road competitions.
A pulling force of up to 1360 kg is achieved thanks to a 1.4 hp electric motor. With a maximum load of 1.3 tons, the rope winding speed on the drum is 2.8 m/min.

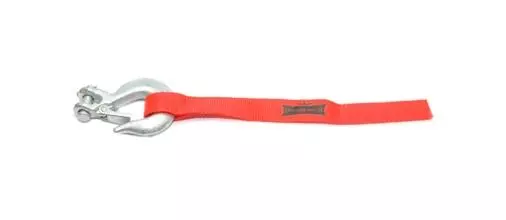

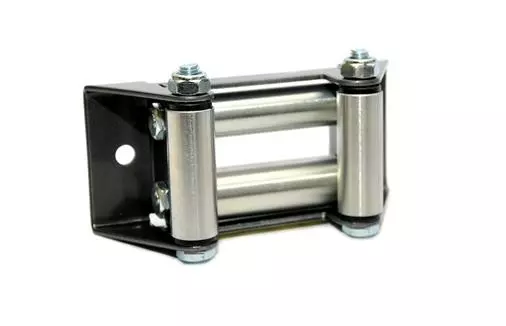

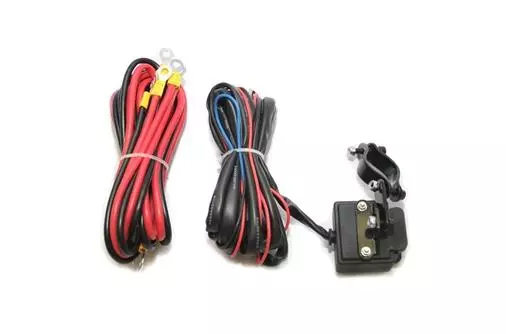

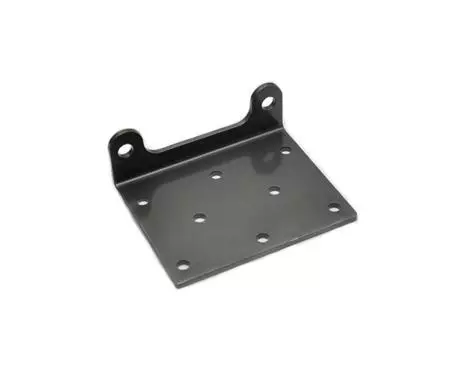

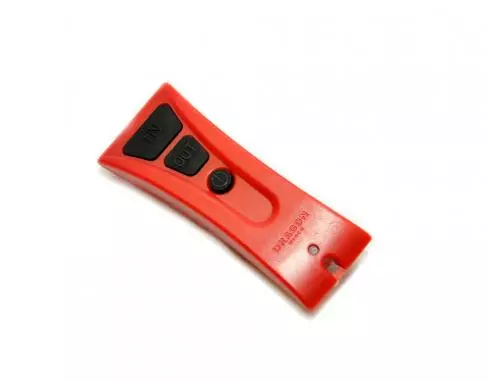

For convenience, the manufacturer has provided control with a remote control. In addition, the set includes a hook, a 15-meter steel cable, power cables, guide rollers, as well as a support platform and mounting screws for mounting.
Sealed seals allow the ATV winch to be used in extreme off-road conditions. The device operates from the onboard 12 V network.
Speed of cable laying on the drum and power (first turn)
| Load level | kg | 0 | 453 | 907 | 1360 |
| Broaching speed | m/min | 4,9 | 4,3 | 3,5 | 2,8 |
| Voltage, 12 V | А | 18,7 | 50 | 101 | 135 |
Pulling force depending on the rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 1360 | 1074 | 925 | 802 | 666 |
| Cable length on the drum | м | 2,6 | 5,4 | 8,6 | 12,4 | 15,0 |

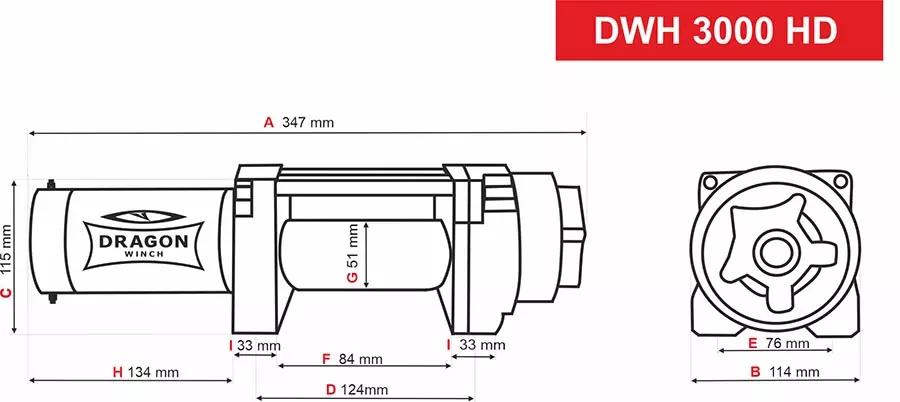

Winch parameters (mm)
| A | Length (total) | 347 |
| B | Width (total) | 114 |
| C | Height from base to highest point | 115 |
| D | Distance between mounting holes (length) | 124 |
| E | Distance between mounting holes (width) | 76 |
| F | Internal length of the drum | 84 |
| G | Drum (diameter) | 51 |
| H | Length of the motor | 134 |
| I | Leg thickness | 33 |
