Winch Automobile Dragon Winch Dwh 15000 HD
40590₴
36934₴
Home / Catalog / Exterior / Winch electric win on the Dragon Winch DWT DRAGON WINCH
Winch electric win on the Dragon Winch DWT DRAGON WINCH
0.0
no reviews
Code: 008860
Official representative
43046₴
In stock
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw13005 |
| Бренд | Dragon Winch |
| Тягове зусилля | 8 tons |
| Довжина троса | 31 m |
| Напруга, вольтаж | 24 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Electric tow truck winch Dragon Winch DWT 18000 HD
The DWT 18000 HD tow truck winch with increased power belongs to the Truck series of traction devices from Dragon Winch. The equipment is able to withstand heavy loads, as it is made for daily use.
The model can be installed on:
- tow truck
- truck
- rescue vehicle
- off-road vehicle
- special equipment, etc.
The powerful 9 hp engine is powered by a 24 V battery, providing a maximum pulling force of over 8 tons. The cable winding speed depends on the load: from one and a half meters per minute at full load to 5.5 m/min at idle.

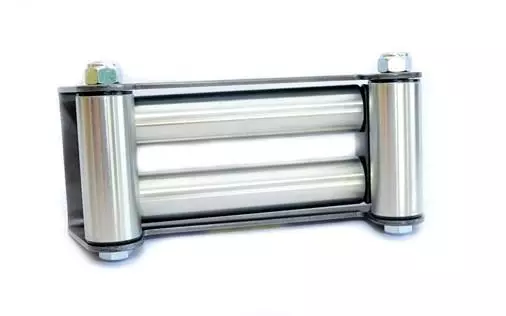

The set includes roller guides that evenly wind the 31-meter cable onto the drum. There is also a remote control (radio and wired) for remote control. The dynamic brake securely fixes the cable when the motor is turned off.
In the Vnedorognik.ua store you can buy a winch for a tow truck at the best price and the possibility of warranty service.
Winding speed and power (first turn of the cable on the drum)
| Load of the winch | kg | 0 | 2721 | 5443 | 8165 |
| Speed of the machine | m / min | 5,5 | 4,1 | 3,1 | 1,5 |
| Current 24 volts | ampere | 39 | 102 | 214 | 280 |
Pulling force depending on the rope turn
| Turn of the rope | 1 | 2 | 3 | 4 | 5 | |
| The load | kg | 8165 | 6450 | 5552 | 4817 | 4001 |
| Cable length on the drum | м | 5,2 | 11,4 | 19 | 27,8 | 31 |

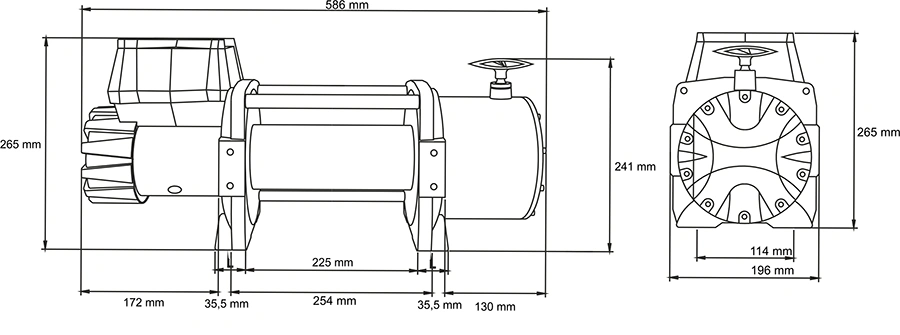

Overall dimensions of the winch (mm)
| A | Length | 586 |
| C | Height from base to highest point | 265 |
| D | Distance between mounting holes (length) | 196 |
| F | Internal length of the drum | 225 |
| G | Drum diameter | 88 |
| H | Length of the motor | 172 |
| I | Length of the transmission | 130 |
| J | Height from the base to the surface of the gear edge | 241 |
| K | Height from base to surface of gear lever edge | 259 |
| L | Thickness of the leg | 35,5 |
