Home / Catalog / Exterior / Winch electric win on the Dragon Winch Dwt 16800 HD
Winch electric win on the Dragon Winch Dwt 16800 HD
0.0
no reviews
Code: 008858
Official representative
39145₴
Out of stock
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw13004 |
| Бренд | Dragon Winch |
| Тягове зусилля | 7 ton |
| Довжина троса | 26 m |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |

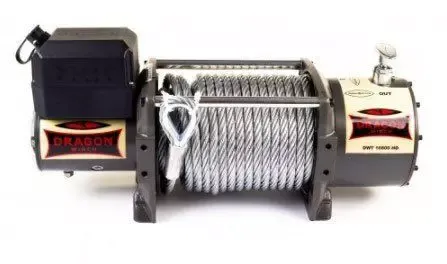

Dragon Winch DWT 16800 HD winch for tow truck
The DWT 16800 HD model belongs to the Truck series of the popular manufacturer of reliable traction devices Dragon Winch. The winch can be installed on a tow truck, rescue vehicle, off-road vehicle, special equipment, etc.
Advantages of the equipment:
- High pulling power. The winch can withstand a maximum load of up to 7620 kg.
- Increased structural strength. The device is designed for constant extreme loads and systematic use.
- Electric drive with a high power of 7.8 hp, which operates at a voltage of 12 V or 24 V.
- Remote control. Convenient remote control and three-speed gearbox allow you to select the optimal operating mode.
- Dynamic brake for safety. In case of engine failure, the dynamic brake is activated, which fixes the load in a stable position.
- Roller guides for uniform laying of the 26 m long cable.
The Vnedorognik.ua online store officially imports original Dragon Winch brand products and provides warranty service for the equipment.
Cable laying speed and power (first turn on the drum)
| Load level | kg | 0 | 4532 | 5443 | 7620 |
| Broaching speed | m / min | 5,5 | 2,3 | 1,8 | 1,1 |
| Voltage, 12 V | А | 70 | 260 | 340 | 470 |
| Voltage, 24 V | А | 30 | 160 | 210 | 270 |
Pulling force depending on the rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | |
| Pulling force | kg | 7620 | 6157 | 5165 | 4449 |
| Length of cable on the drum | м | 5 | 11,5 | 19 | 26 |

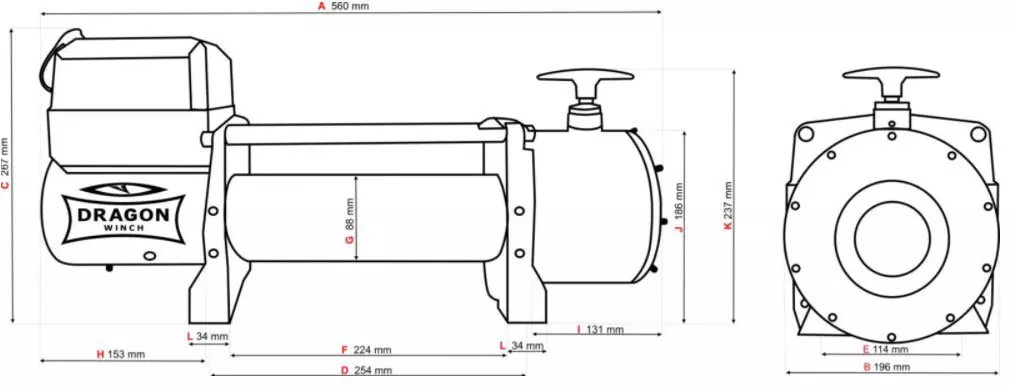

Overall dimensions of the winch (mm)
Instructions
Installation Guide
