Winch Automobile Dragon Winch Dwh 15000 HD
0.0
no reviews
Code: 008857
Official representative
36934₴
Discount -9%
Standard price 40590 ₴
In stock
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw12007 |
| Бренд | Dragon Winch |
| Тягове зусилля | 7 ton |
| Довжина троса | 28 m |
| Напруга, вольтаж | 12 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Electric car winch Dragon Winch DWH 15000 HD
The Dragon Winch electric car winch is a powerful equipment that is used to tow a car and move objects with different weights and dimensions in a horizontal direction. Its usefulness is expressed by positive assessments by off-road travel enthusiasts, professional off-road athletes, as well as employees of the Ministry of Emergencies, tow trucks and utilities.
It is equipped with a noticeably high-performance motor with a power of up to 9 hp. It can develop a pull of 7 tons already at the starting turn. The winch is based on a robust housing with a 28-meter cable, an electric drive, a cable drum and a gearbox.
The winch is switched on when connected to a 12 V battery. The winch can be attached not only inside the car, but also to any surface with a stable base. It can be operated remotely via a remote control.
The winch delivery set includes:
- control unit;
- cable, material: metal or synthetic;
- hook;
- 2 remote controls: wired and remote;
- fixing screws;
- roller guides.
Speed of cable laying on the drum and power (first turn)
| Load level | kg | 0 | 1814 | 3629 | 6803 |
| Speed of the machine | m / min | 6,5 | 5,2 | 3,8 | 1,5 |
| Voltage, 12 V | А | 65 | 177 | 353 | 483 |
Pulling force depending on the wire rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 6803 | 5372 | 4626 | 4014 | 3333 |
| Cable length on the drum | м | 5,2 | 11 | 18,3 | 26,6 | 28 |

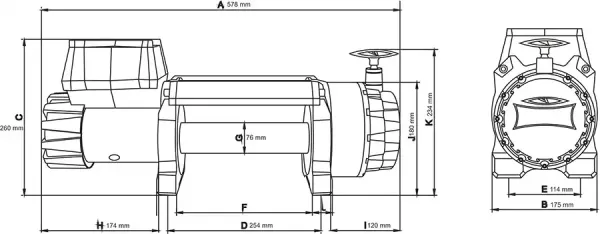

Winch dimensions (mm)
| A | Length (total) | 578 |
| B | Width (total) | 175 |
| C | Height from base to highest point | 260 |
| D | Distance between mounting holes (length) | 254 |
| E | Distance between mounting holes (width) | 114 |
| F | Internal length of the drum | 221 |
| G | Drum (diameter) | 76 |
| H | Length of the motor | 174 |
| I | Length of the transmission | 120 |
| J | Height from the base to the surface of the gear edge | 180 |
| K | Height from the base to the surface of the gear lever edge | 234 |
| L | Thickness of the leg | 33 |
