Winch Automobile Dragon Winch Dwh 9000 HD
0.0
no reviews
Code: 008855
Official representative
730$
Discount -9%
Standard price 802 $
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw12005 |
| Бренд | Dragon Winch |
| Тягове зусилля | 4 t |
| Довжина троса | 28 m |
| Напруга, вольтаж | 12 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Electric car winch Dragon Winch DWH 9000 HD
The electric car winch Dragon Winch is a powerful equipment that is used to tow a car and horizontal movement of objects with different dimensions and weight. Its benefits are expressed by positive reviews from off-road travel enthusiasts, professional off-road athletes, as well as employees of the Ministry of Emergencies, utilities and tow trucks.
It is equipped with a considerably productive engine with a power of 9 hp. This is enough to develop a pulling force of 4 tons already at the starting turn. The winch includes a robust housing with an electric drive, gearbox, cable drum and 28-meter cable.

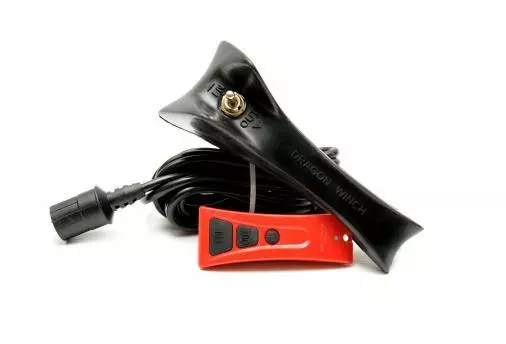

The winch is activated when connected to a 12 V battery. It can be attached not only inside the car - any surface with a stable base is suitable. It can also be controlled from a distance via the remote control.
Cable laying speed per drum and power (first turn)
| Load level | kg | 0 | 1814 | 3629 | 4082 |
| Broaching speed | m/min | 10,9 | 8,8 | 6,2 | 5,4 |
| Voltage, 12 V | А | 70 | 211 | 422 | 480 |
Pulling force depending on the wire rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | |
| Pulling force | kg | 4082 | 3225 | 2776 |
2408 |
| Cable length on the drum | м | 6,2 | 13,8 | 22 | 28 |

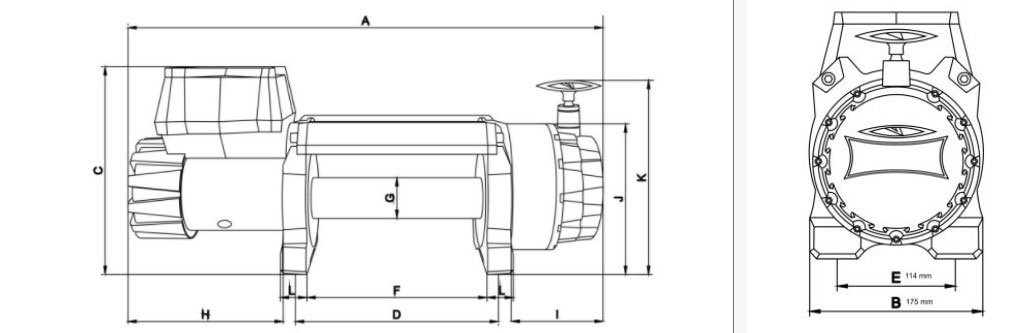

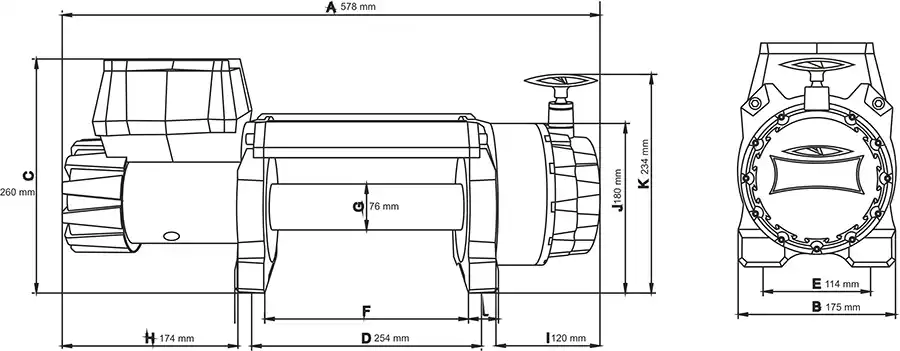

Overall dimensions of the winch (mm)
| A | Length (total) | 578 |
| B | Width (total) | 175 |
| С | Height from base to top point | 260 |
| D | Distance between mounting holes (length) | 254 |
| E | Distance between mounting holes (width) | 114 |
| F | Internal length of the drum | 221 |
| G | Drum (diameter) | 76 |
| G | Drum (diameter) | 76 |
| H | Length of the motor | 174 |
| I | Length of the transmission | 120 |
| J | Height from the base to the surface of the gear edge | 180 |
| K | Height from the base to the surface of the gear lever edge | 234 |
| L | Thickness of the leg | 33 |
