Quadrocycle winch Electric Dragon Winch dwh 4500 HD
13839₴
12614₴
Home / Catalog / Exterior / Dragon Winch dwh 4500 hdl electric dragon
Dragon Winch dwh 4500 hdl electric dragon
0.0
no reviews
Code: 008873
Official representative
13655₴
Discount -9%
Standard price 15003 ₴
Ready to ship
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw12004 |
| Бренд | Dragon Winch |
| Тягове зусилля | 2 t |
| Довжина троса | 15 m |
| Напруга, вольтаж | 12 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |

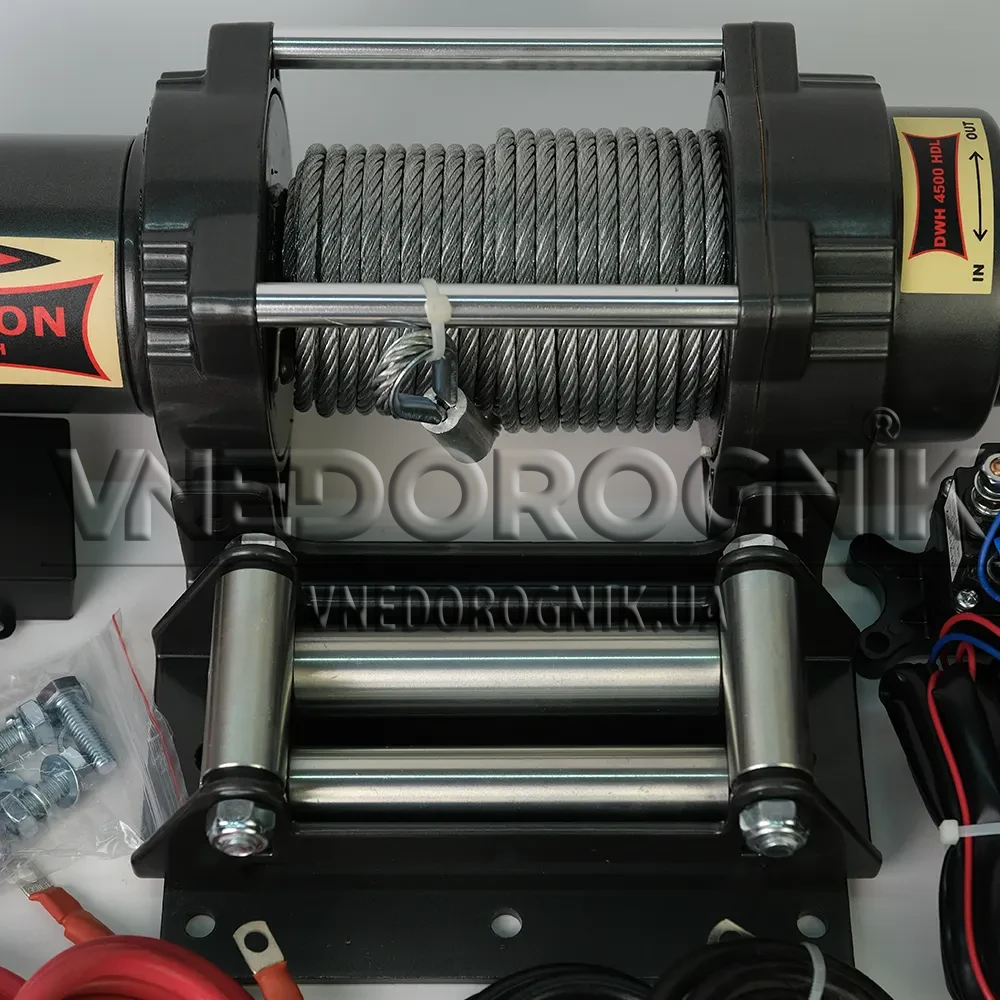

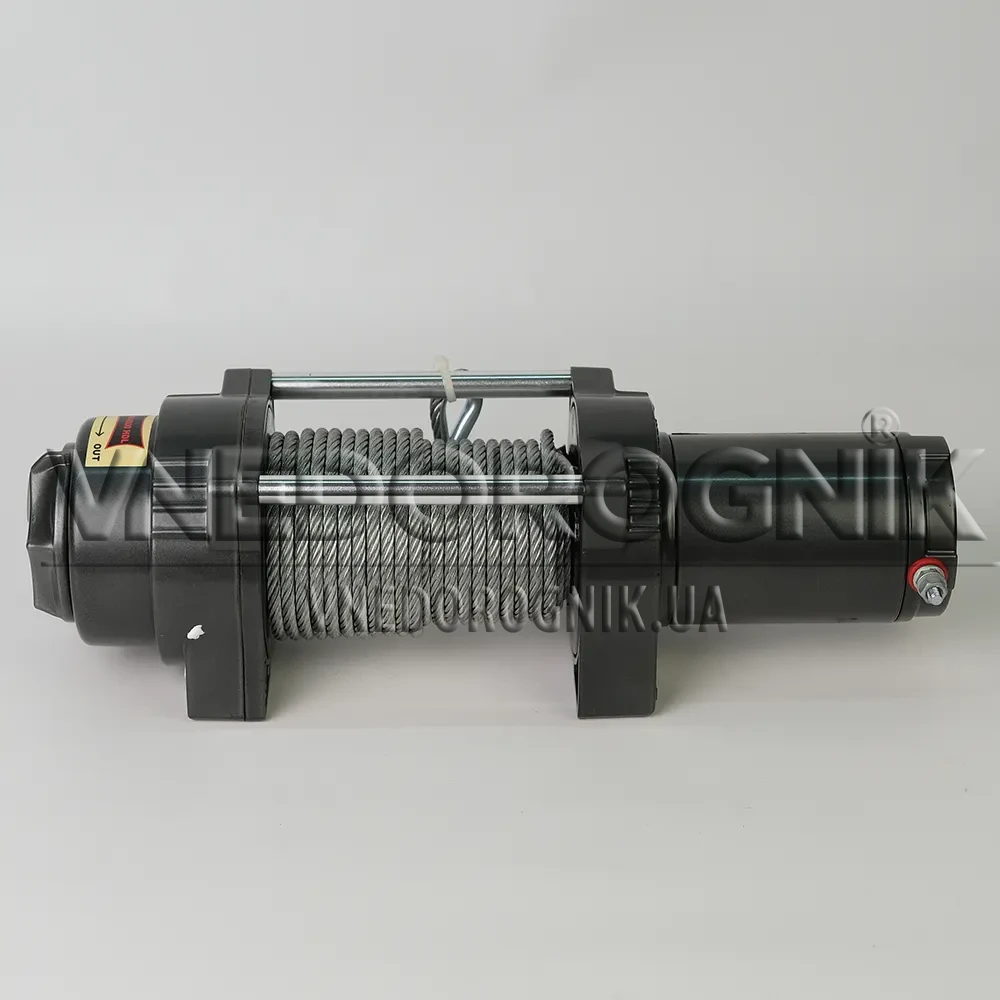

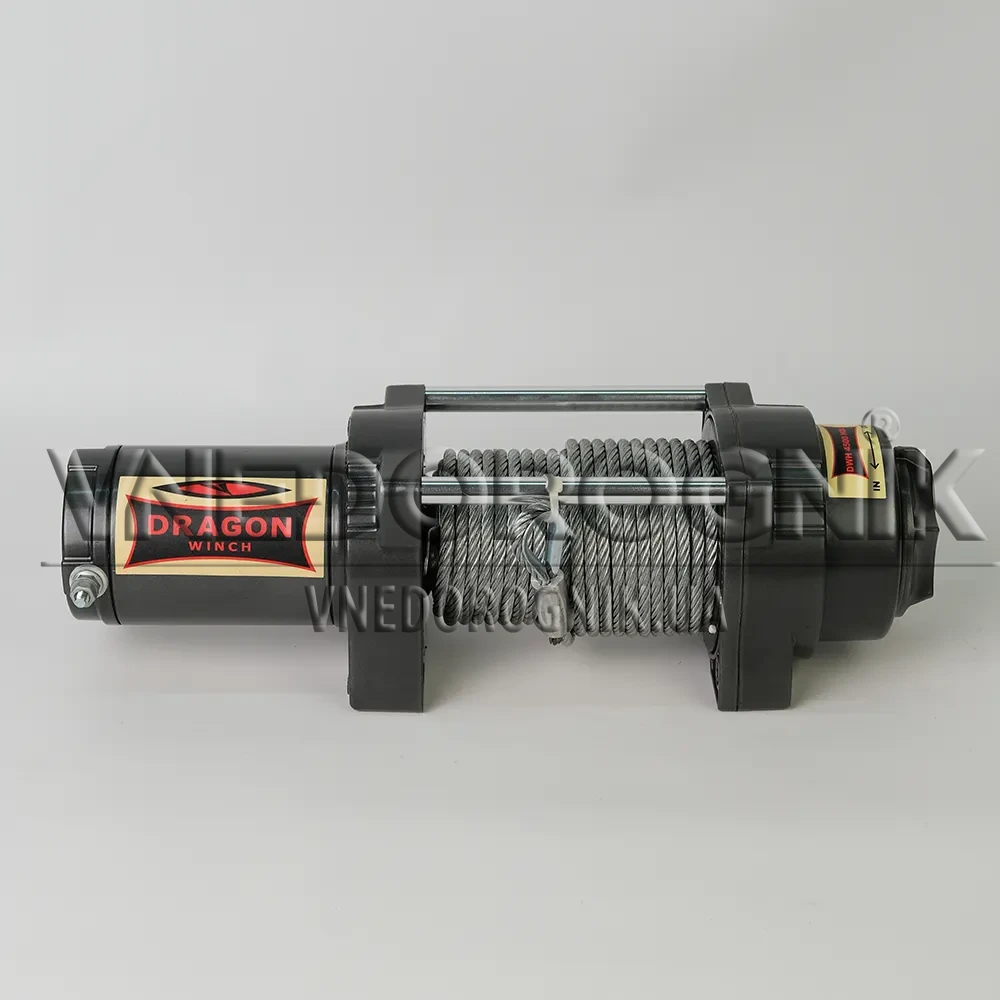

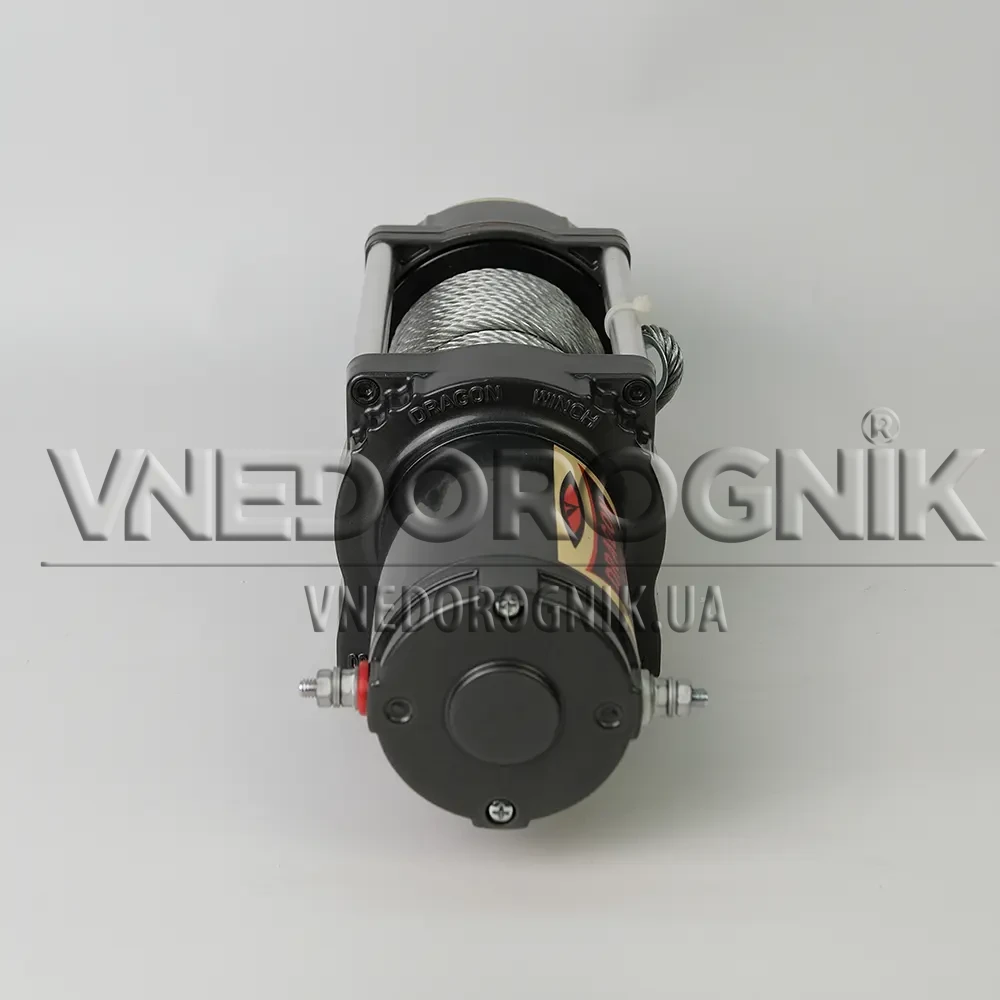

Winch for ATV Dragon Winch DWH 4500 HDL
The manufacturer Dragon Winch has developed a winch specifically for installation on an ATV. The premium Highlander (DWH) series is designed for off-road use.

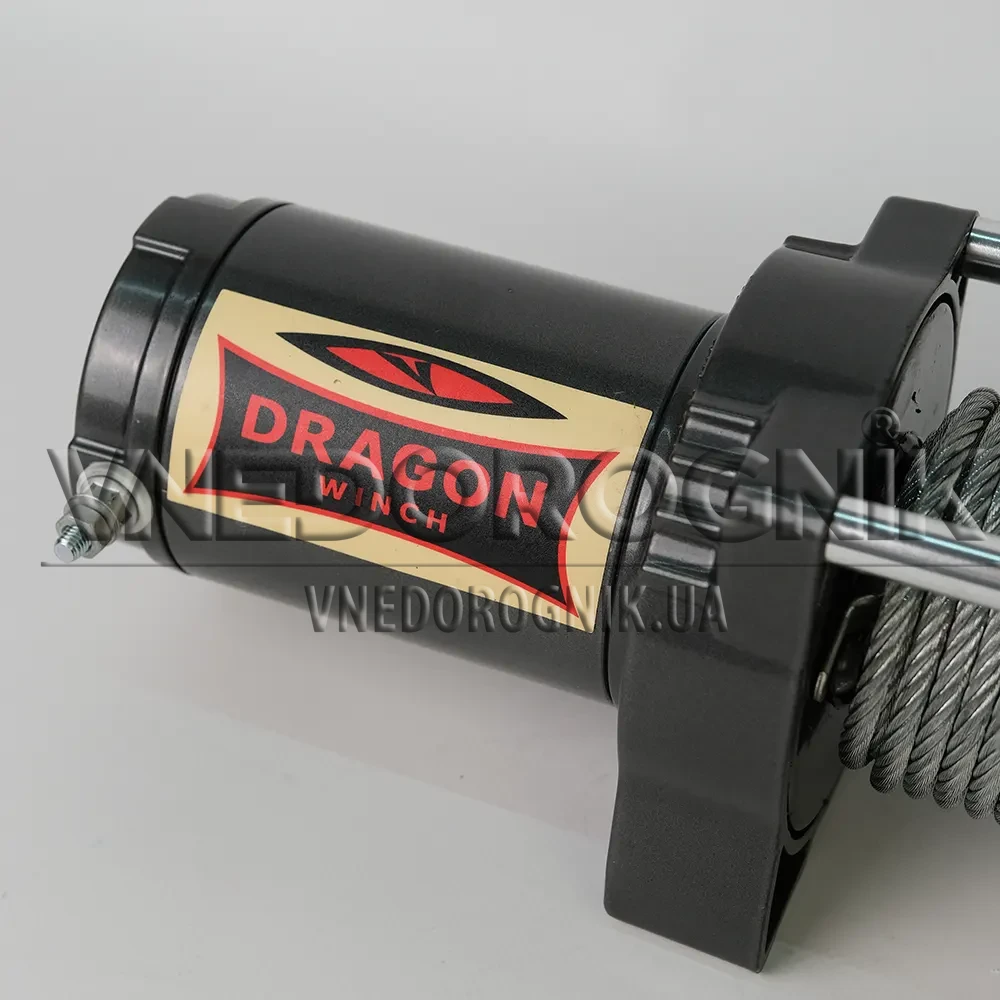

The powerful 1.9 hp electric motor is capable of withstanding a maximum load of over 2 tons. The high speed of cable winding allows the winch to be used during competitions where every second counts.

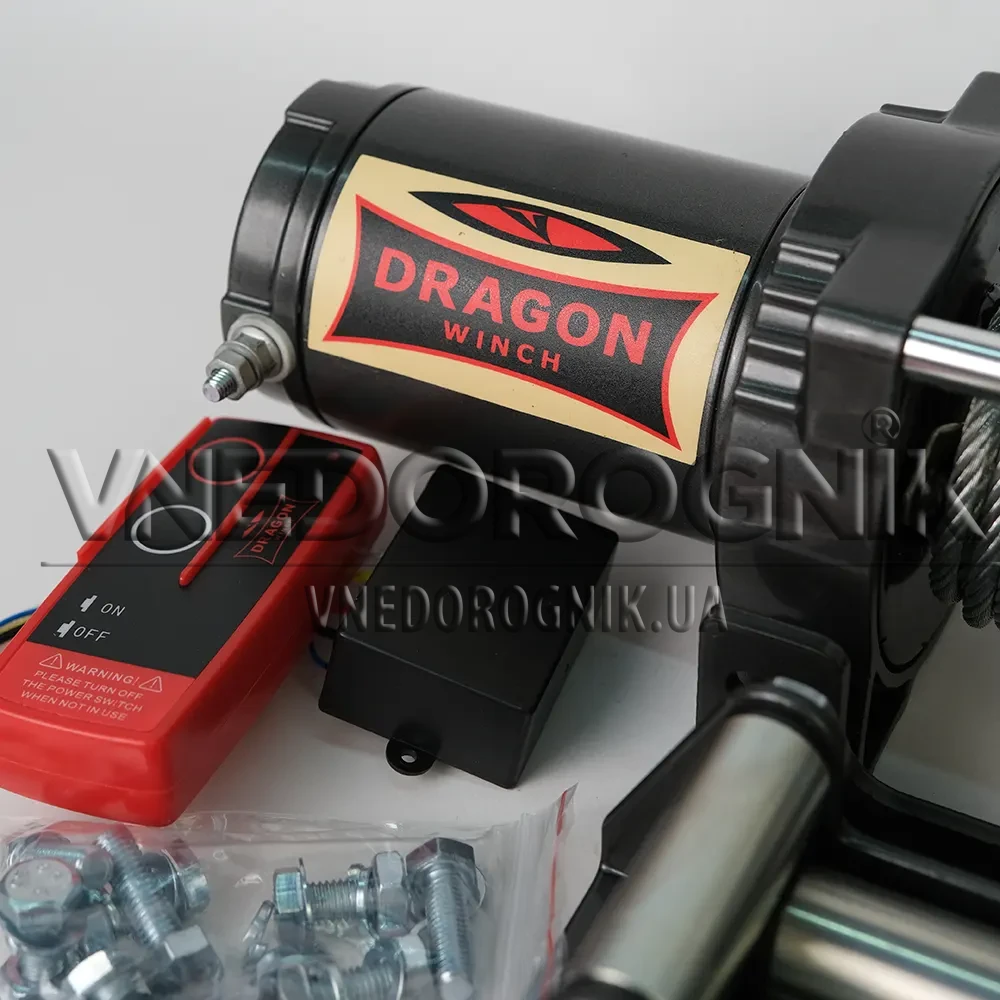

The winch is controlled remotely by a remote control. The set includes roller guides that help the cable not to get tangled and wind evenly on the drum.
The three-speed gearbox is equipped with a planetary gearbox, which is responsible for the smooth movement of the cable. An automatic brake securely locks the load in position.

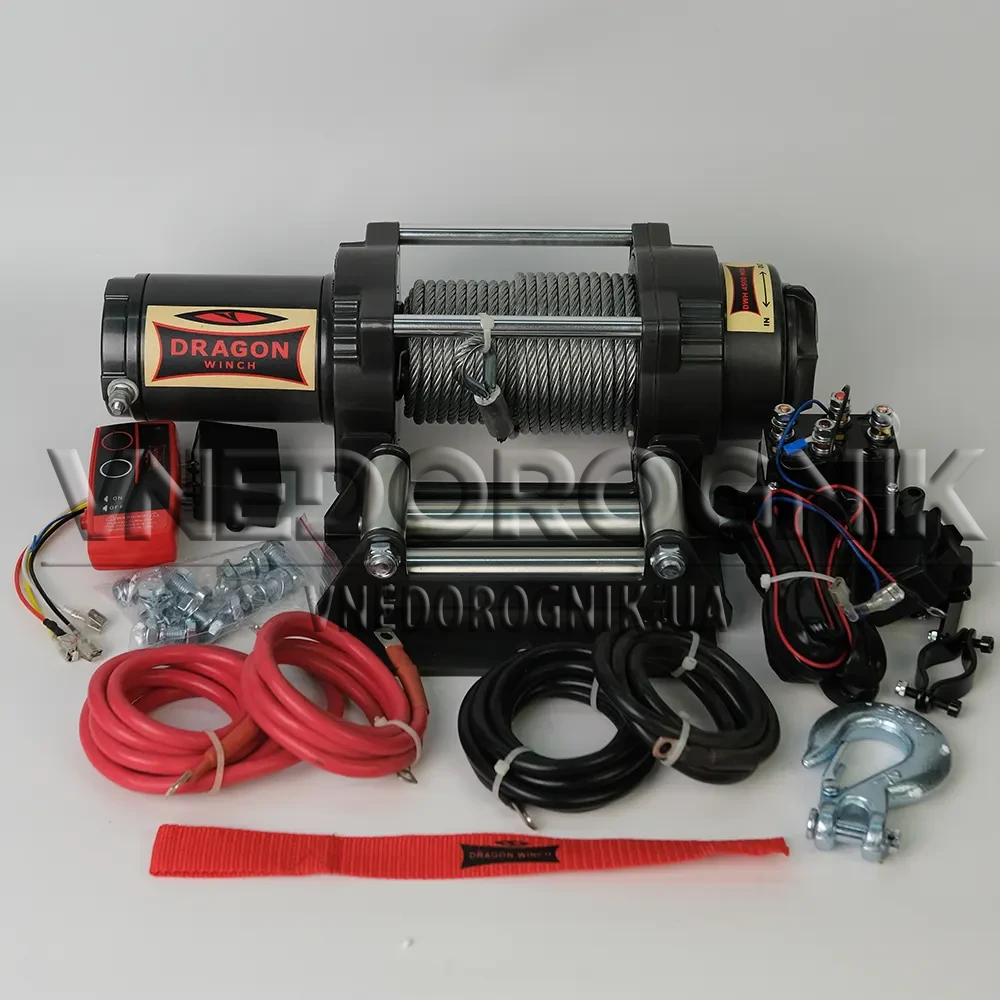

Included:
- DWH 4500 HDL winch;

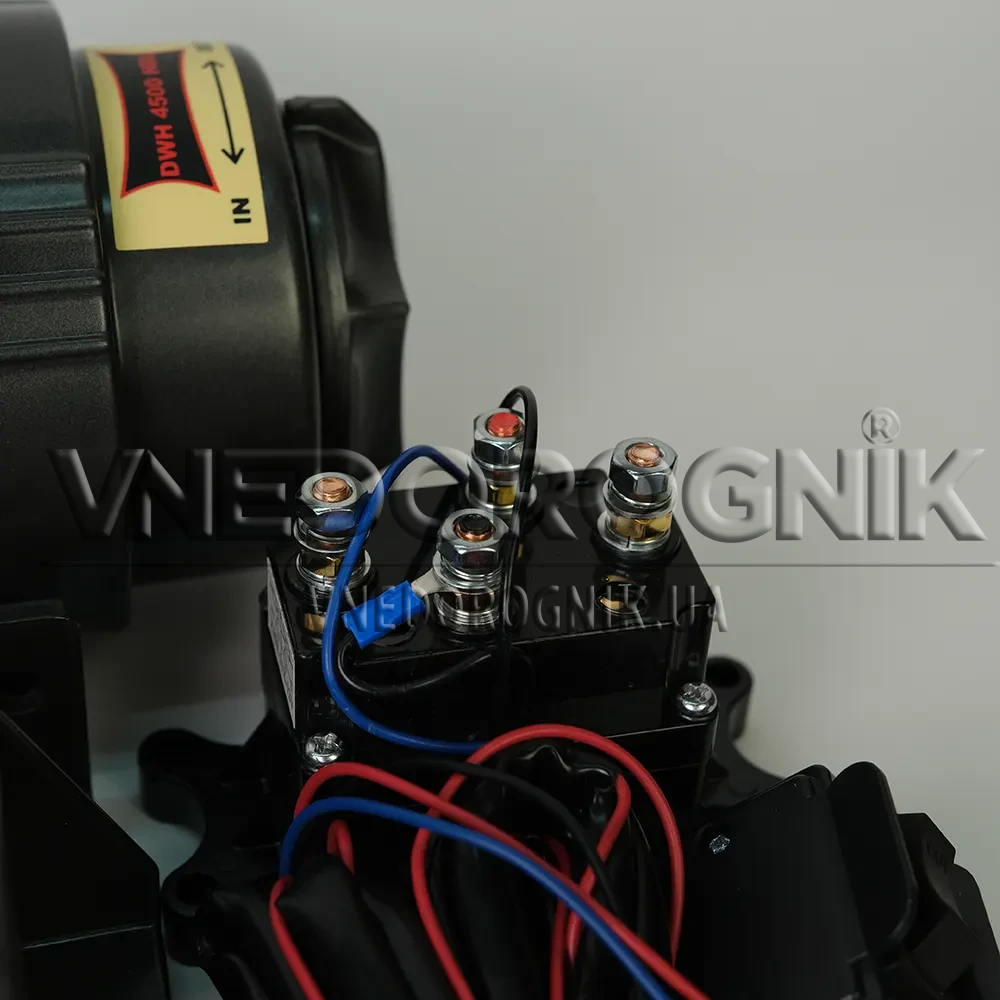

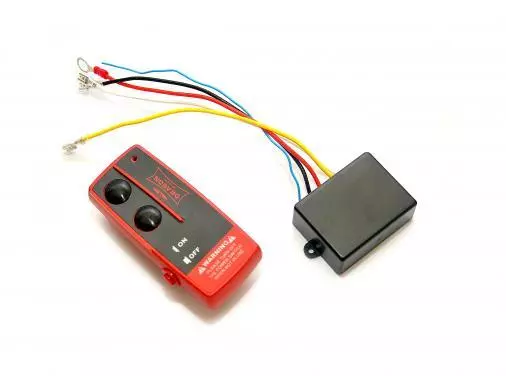

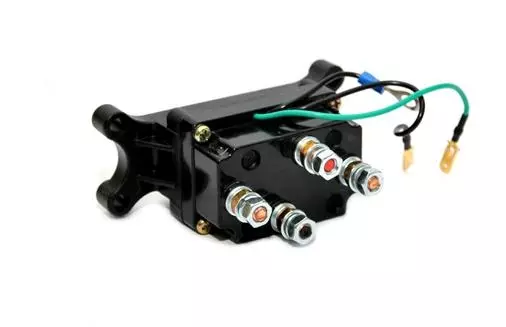

- control unit + remote control;
- power cables;

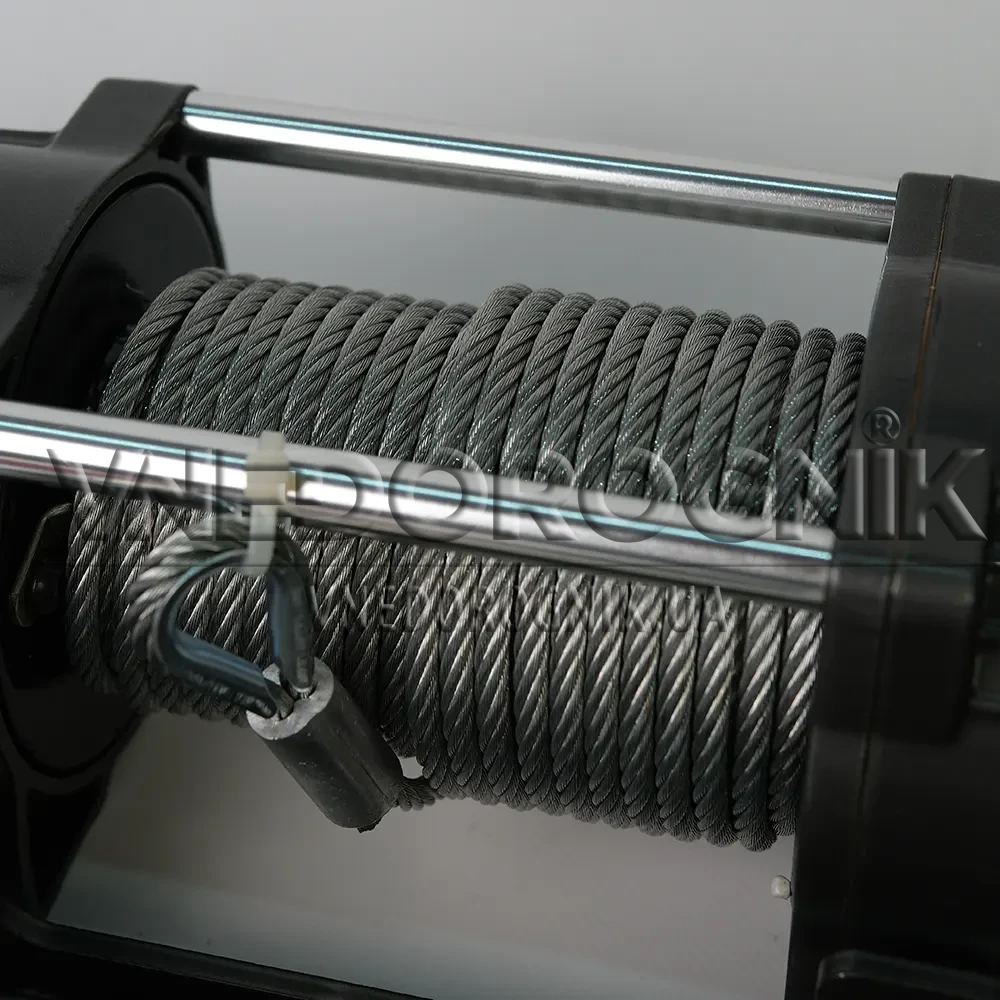

- steel cable;

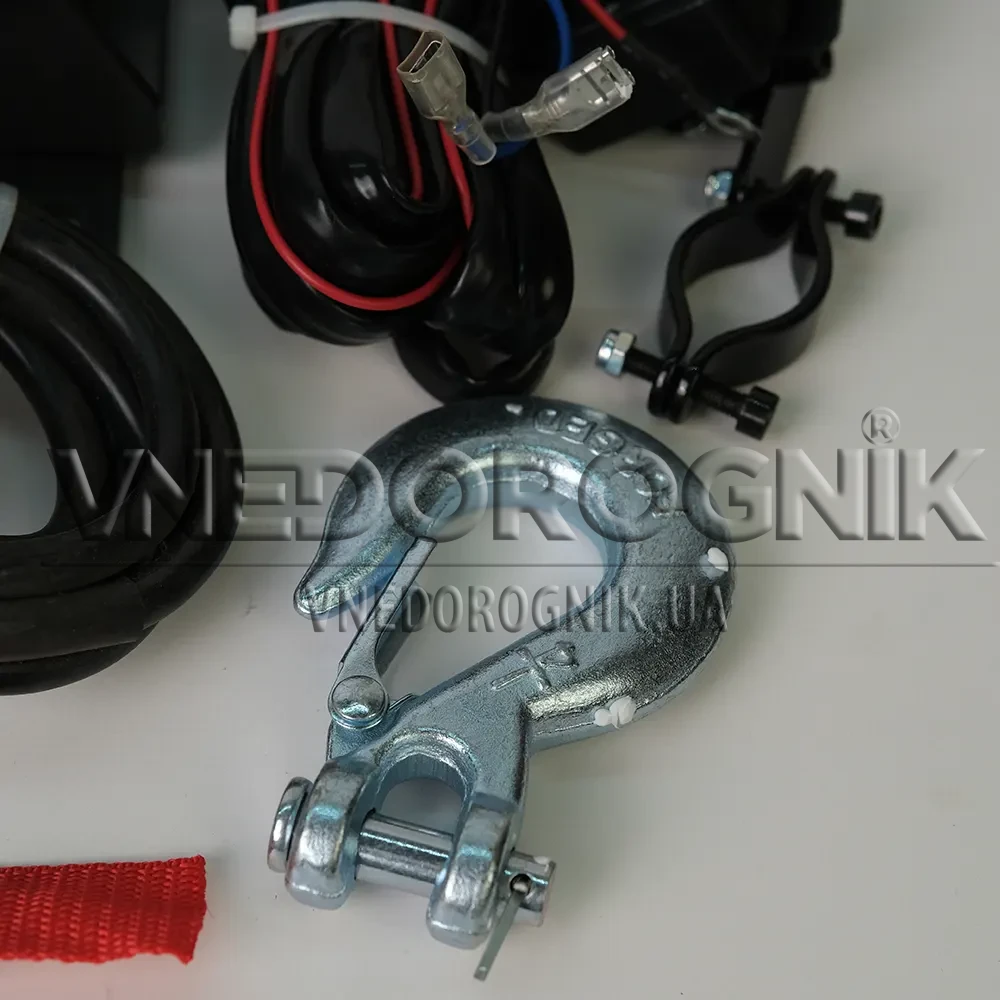

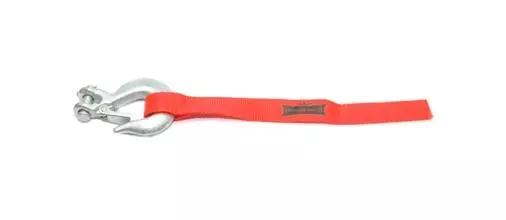

- hook;

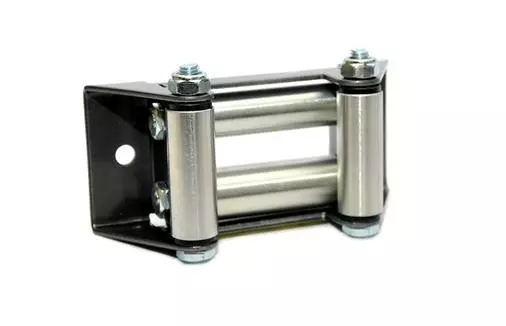

- guide rollers.
The main difference between the model and the DWH 4500 HD winch is a longer body.
Speed of cable laying on the drum and power (first turn)
| Load level | kg | 0 | 453 | 907 | 2041 |
| Broaching speed | m/min | 6,3 | 5,3 | 4,5 | 2,1 |
| Voltage, 12 V | А | 23 | 40 | 81 | 160 |
Pulling force depending on the rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 2041 | 1612 | 1388 | 1204 | 1001 |
| Cable length on the drum | м | 3,7 | 8,1 | 12,9 | 18,3 | 20 |

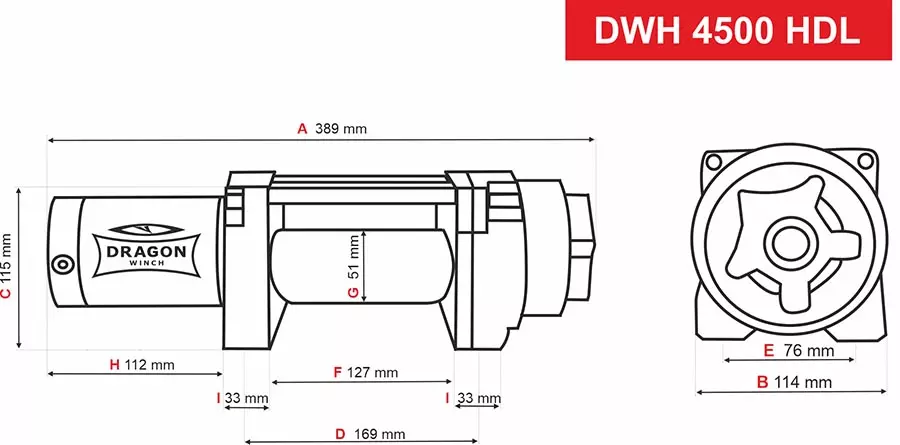

Winch dimensions (mm)
| A | Length (total) | 389 |
| B | Width (total) | 114 |
| C | Height from base to highest point | 115 |
| D | Distance between mounting holes (length) | 169 |
| E | Distance between mounting holes (width) | 76 |
| F | Internal length of the drum | 127 |
| G | Drum (diameter) | 51 |
| H | Length of the motor | 112 |
| I | Leg thickness | 33 |
