Quadrocycle winch Electric Dragon Winch dwh 4500 HD
0.0
no reviews
Code: 008872
Official representative
12614₴
Discount -9%
Standard price 13839 ₴
Ready to ship
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw12003 |
| Бренд | Dragon Winch |
| Тягове зусилля | 2 t |
| Довжина троса | 15 m |
| Напруга, вольтаж | 12 |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |

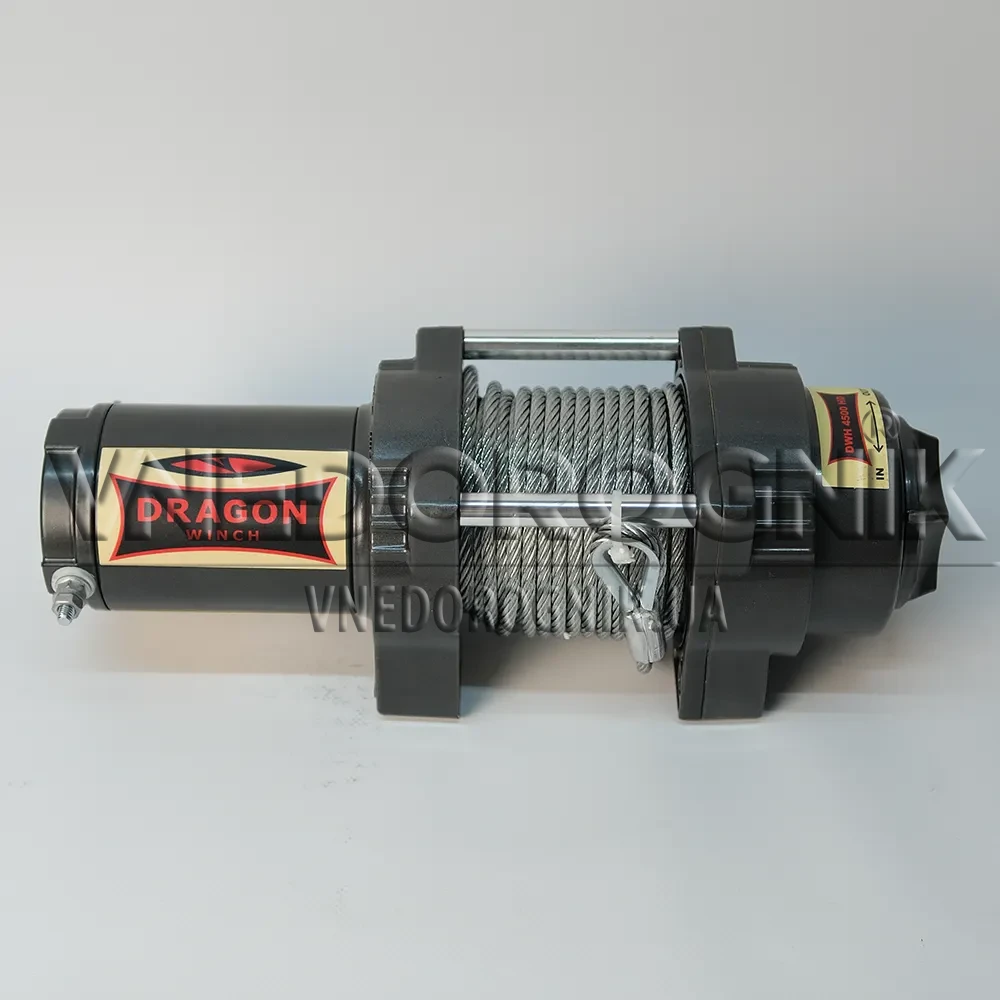

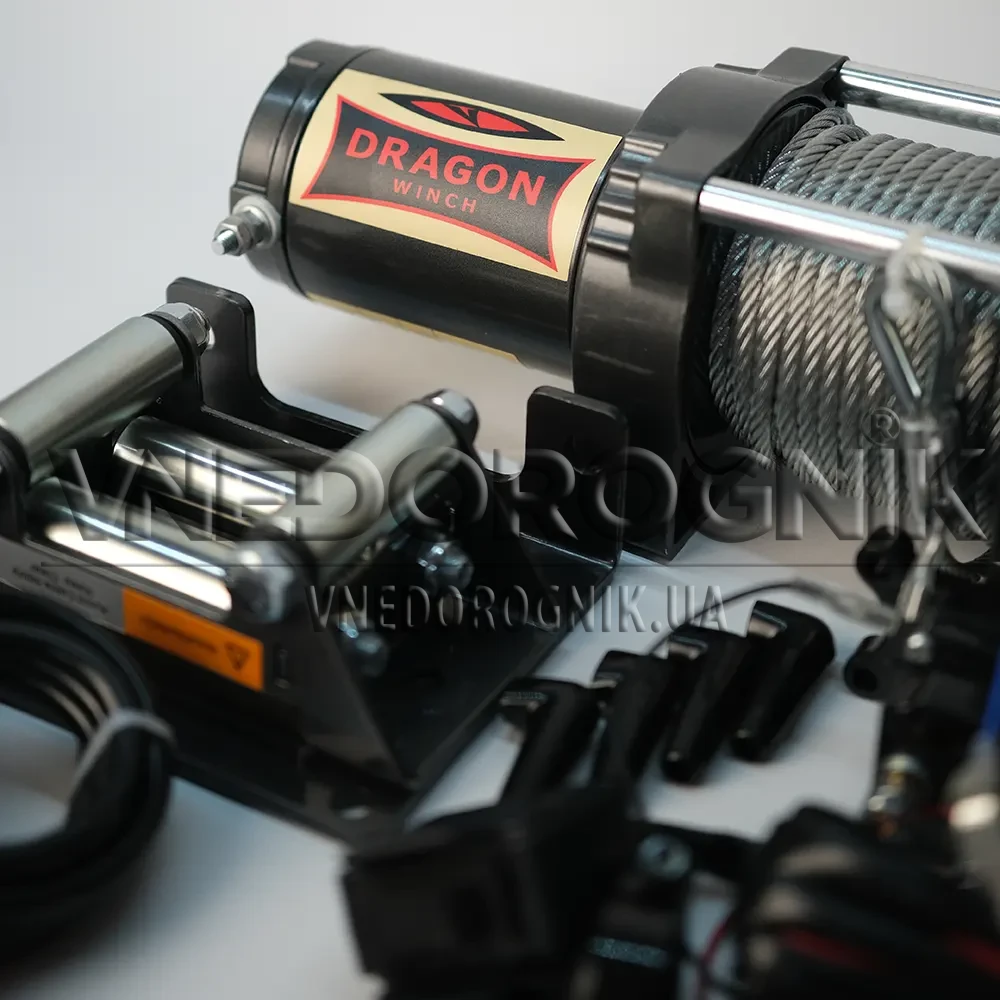

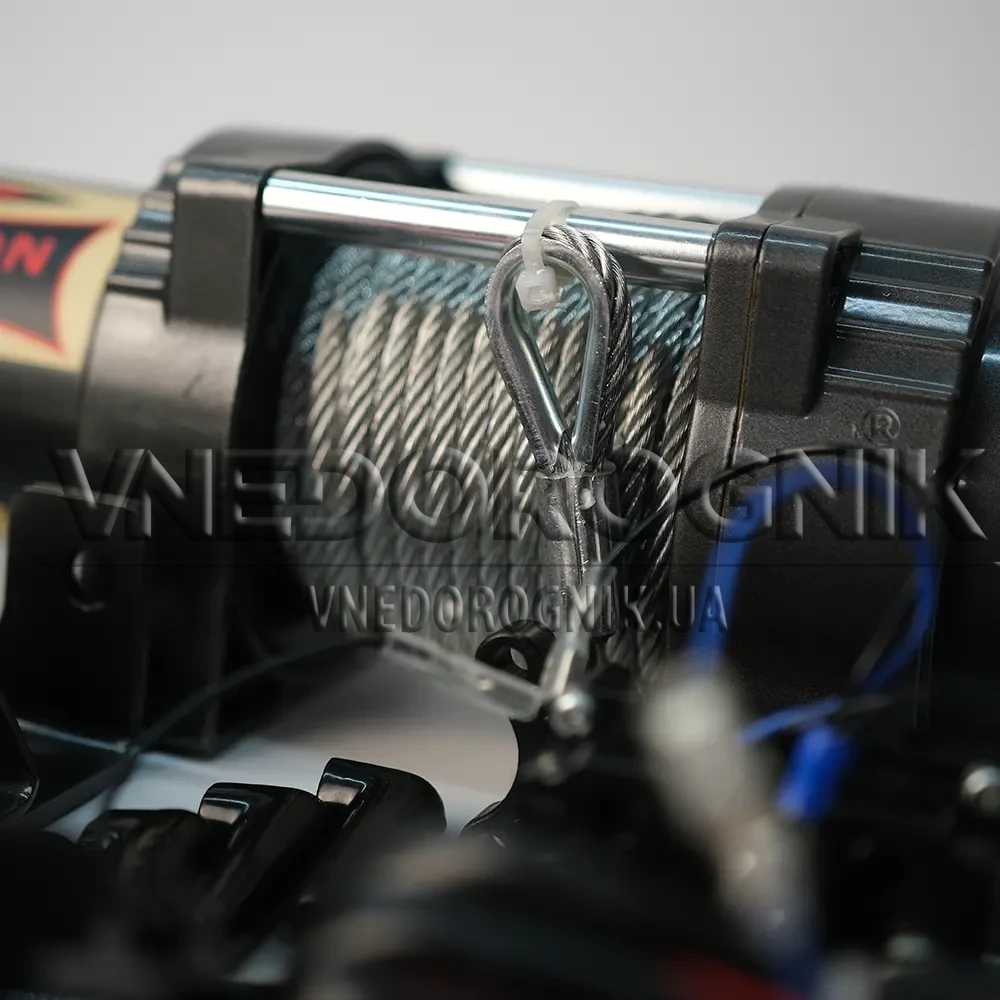

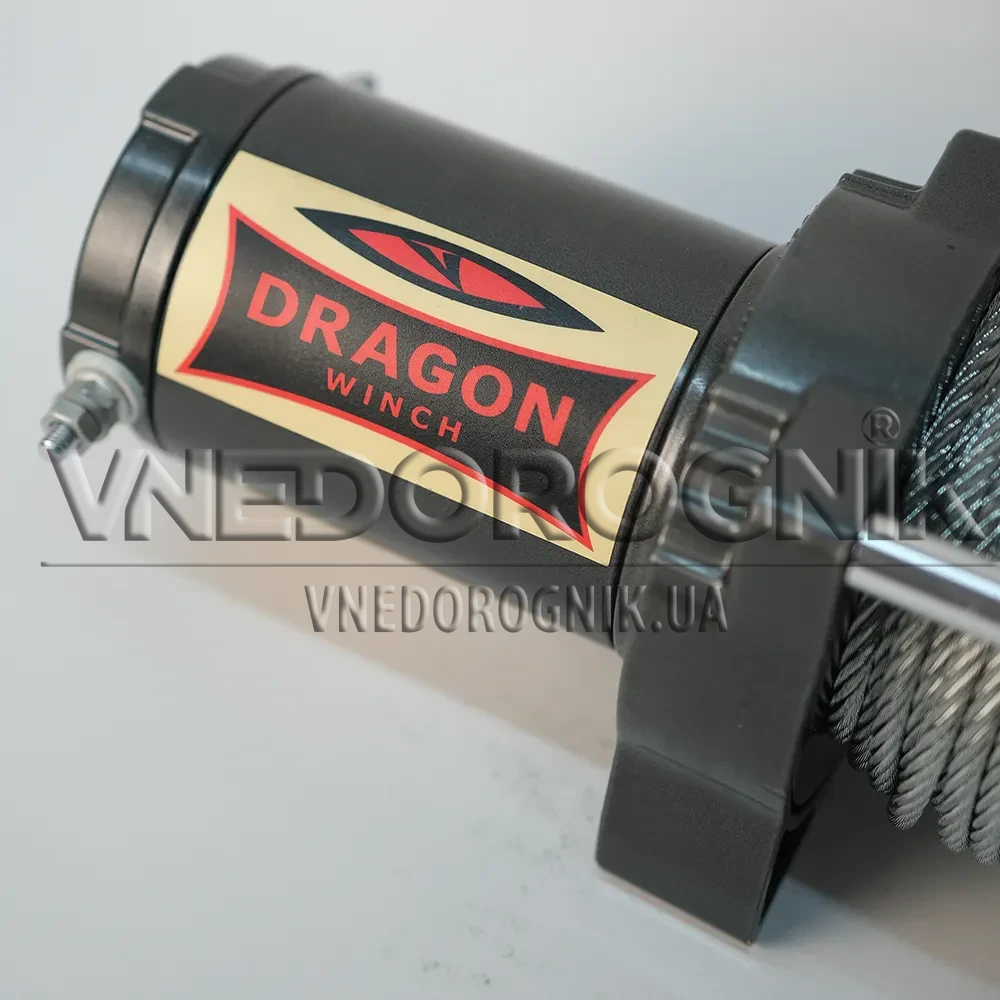

Electric winch for ATV DWH 4500 HD from the manufacturer Dragon Winch
Thewinches for ATVs of the Highlander series are specially designed for use in off-road sports. The robust design and hermetic seals allow the equipment to be used even during extreme driving.
The device, equipped with a 1.9 hp electric motor, is powered by a battery (12 V). The maximum load on the Dragon Winch is 2041 kg.
The three-stage planetary gearbox gearbox ensures smooth cable movement. The automatic brake reliably fixes the load in the desired position.

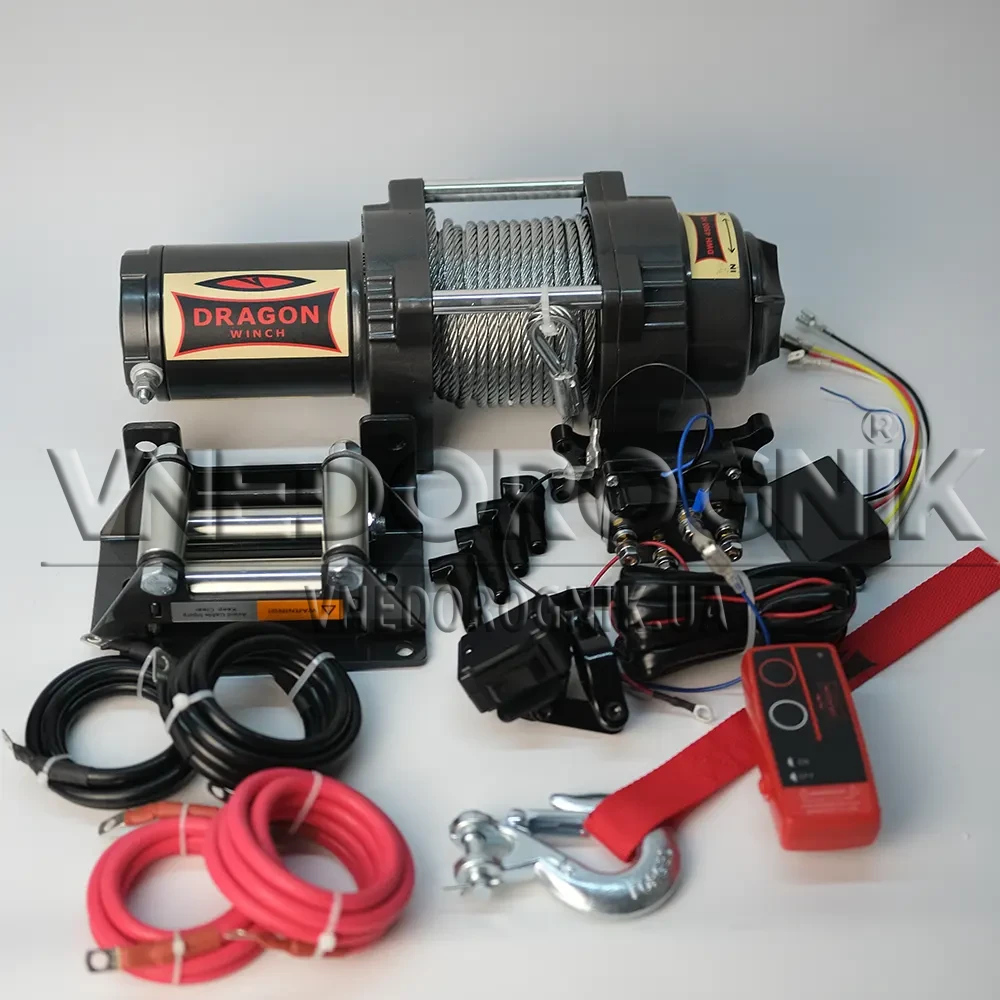

Included:
- DWH 4500 HD winch;

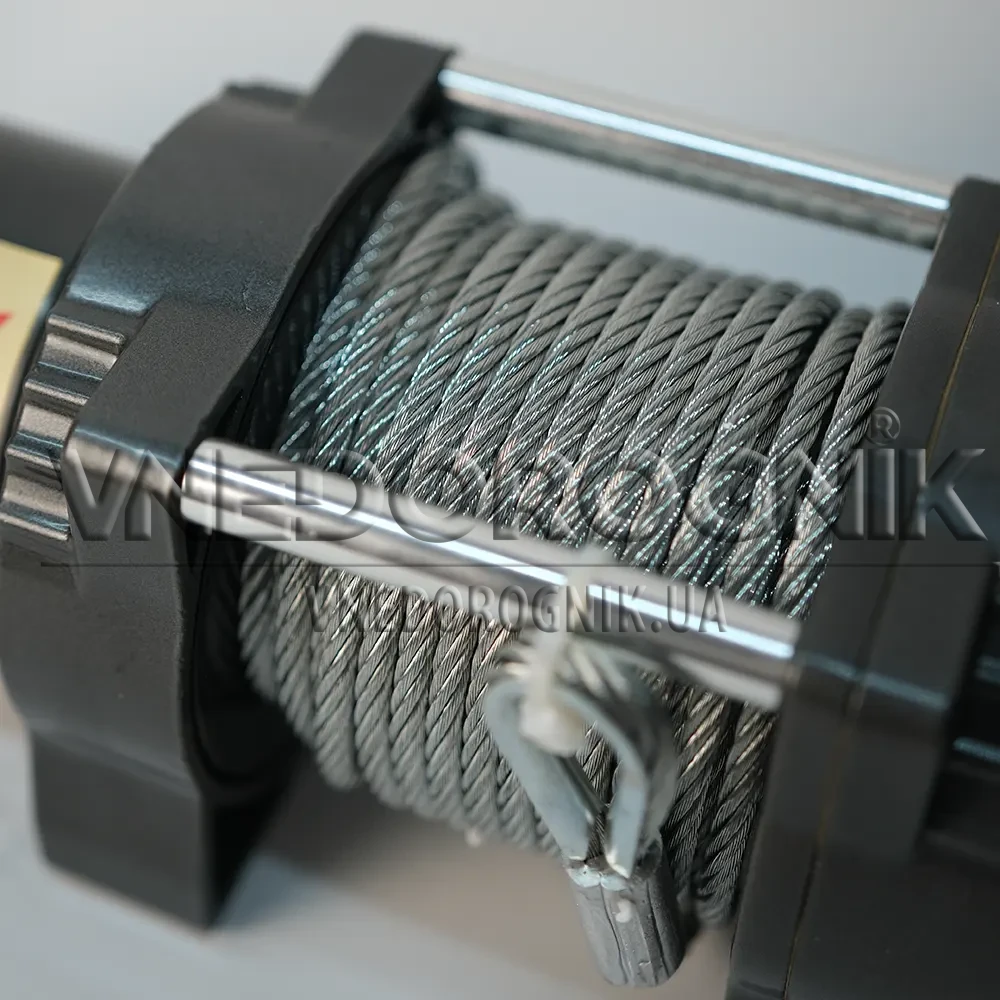

- cable length 15 m

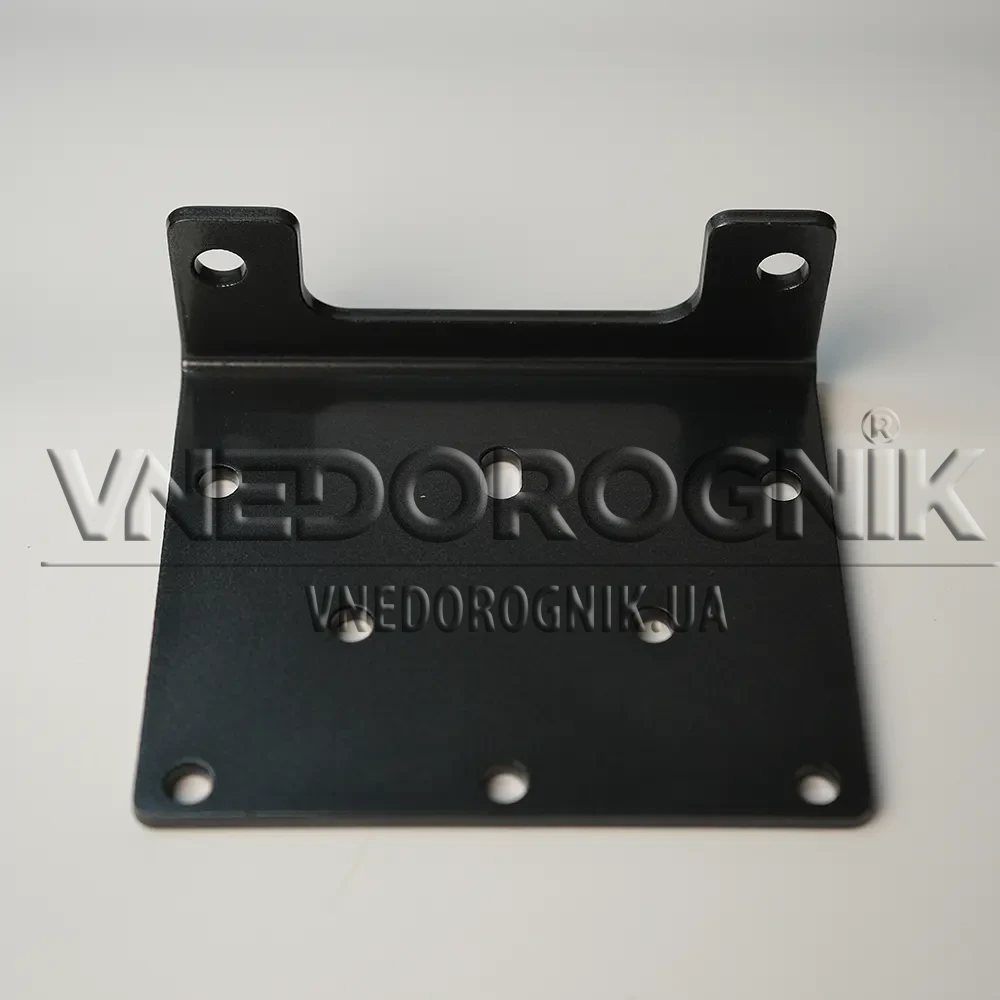

- support platform

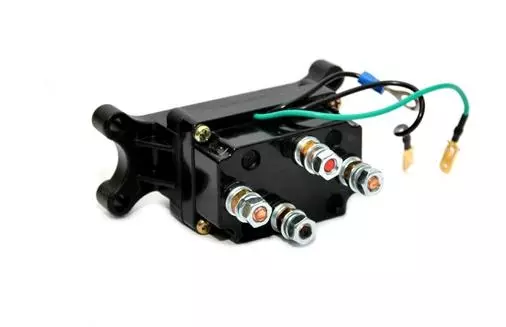

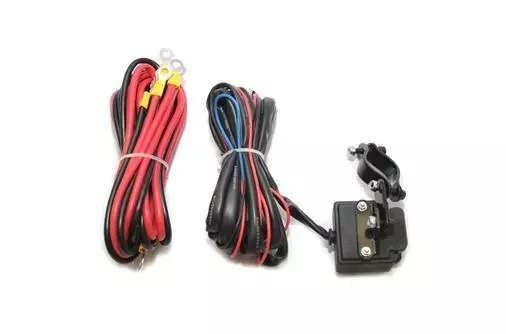

- control unit;

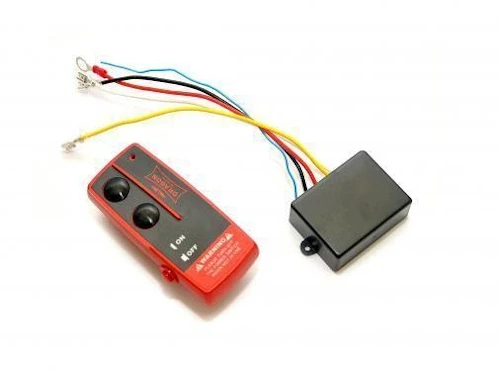

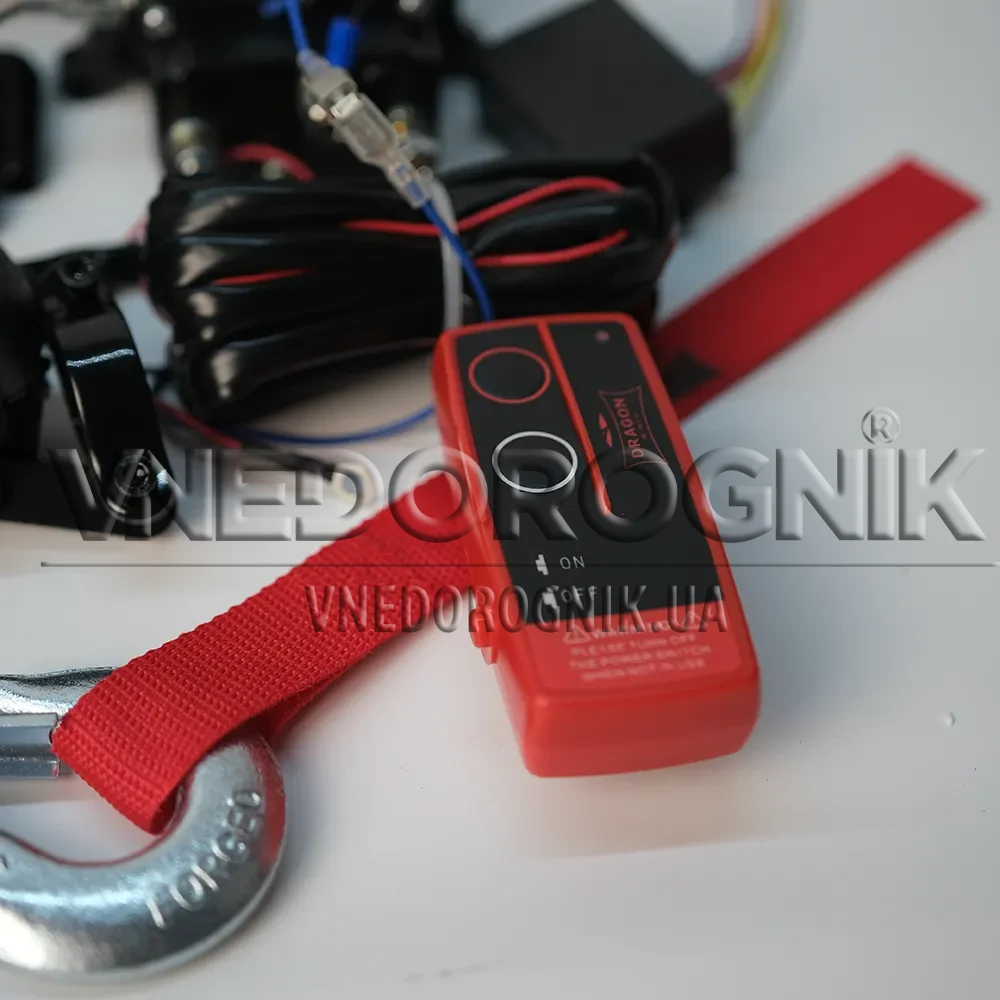

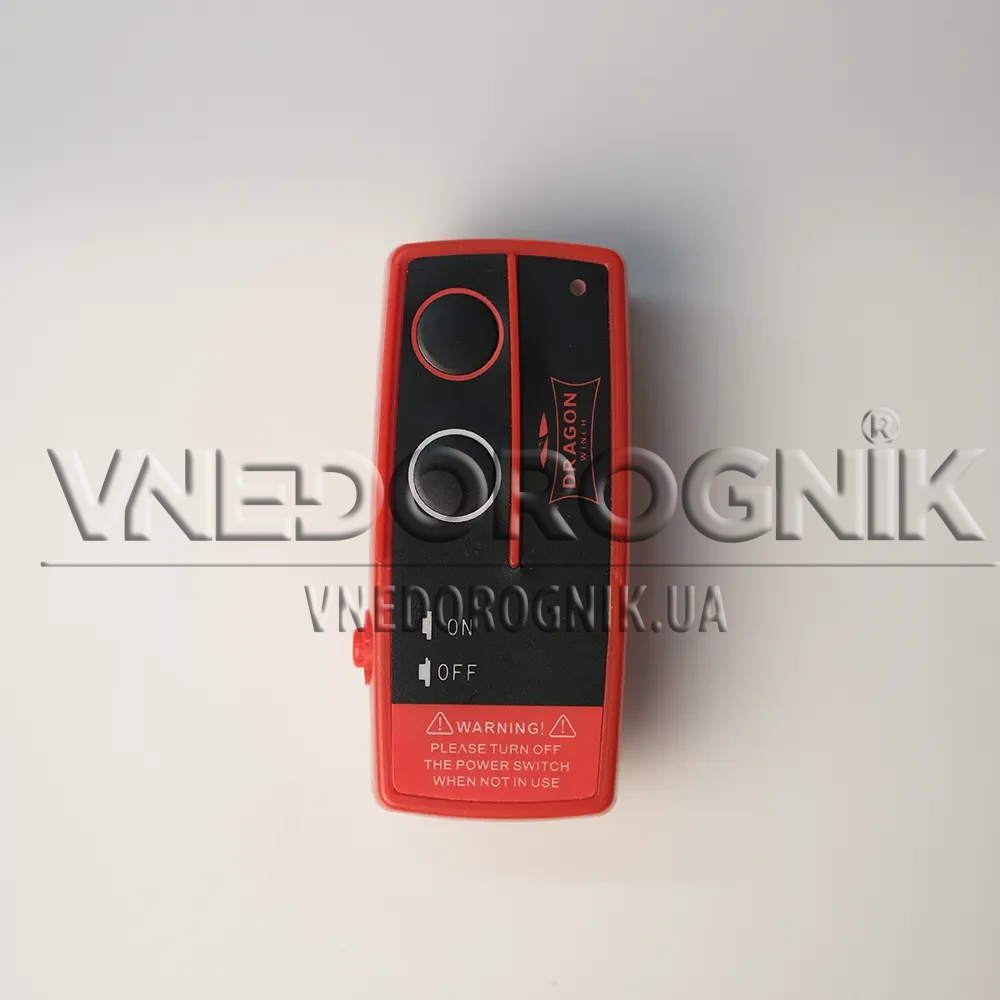

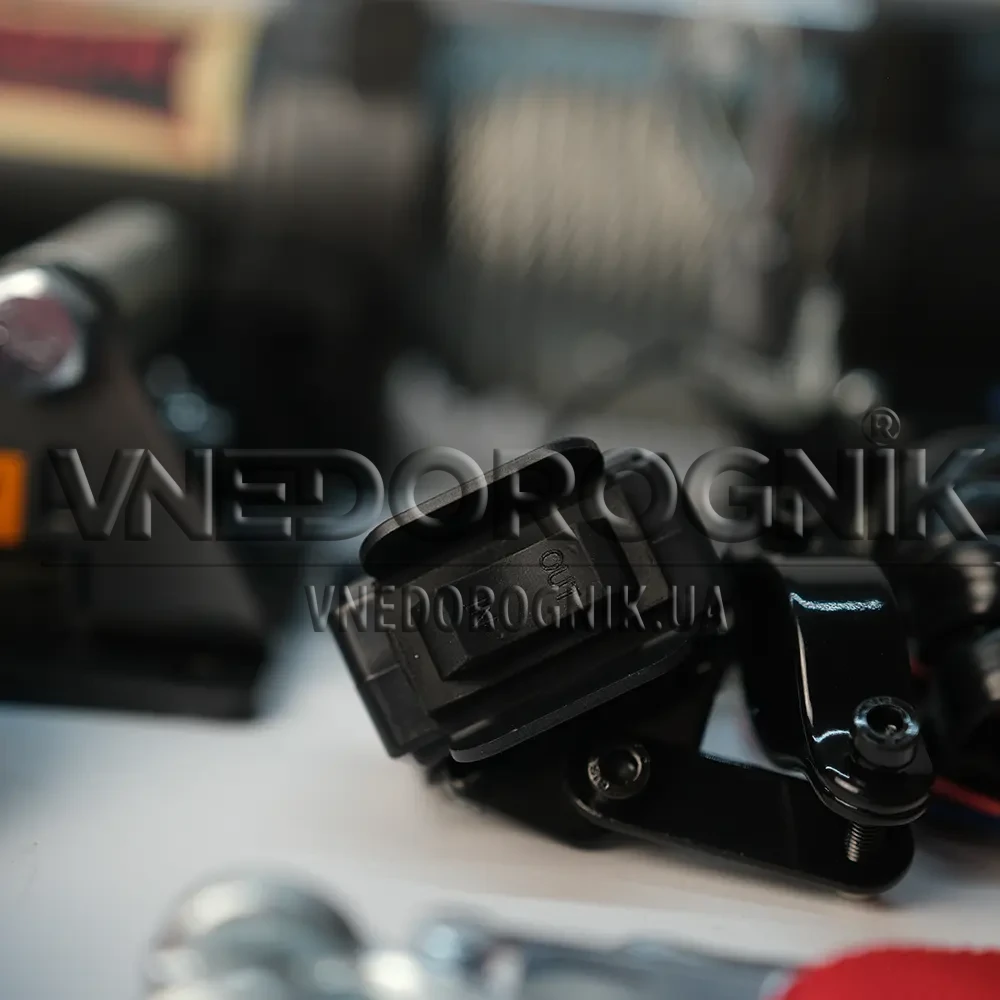

- control panel;

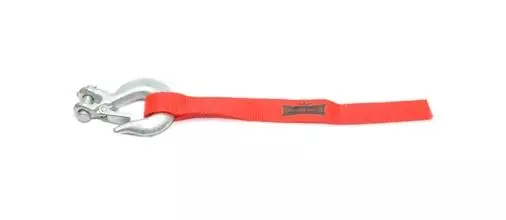

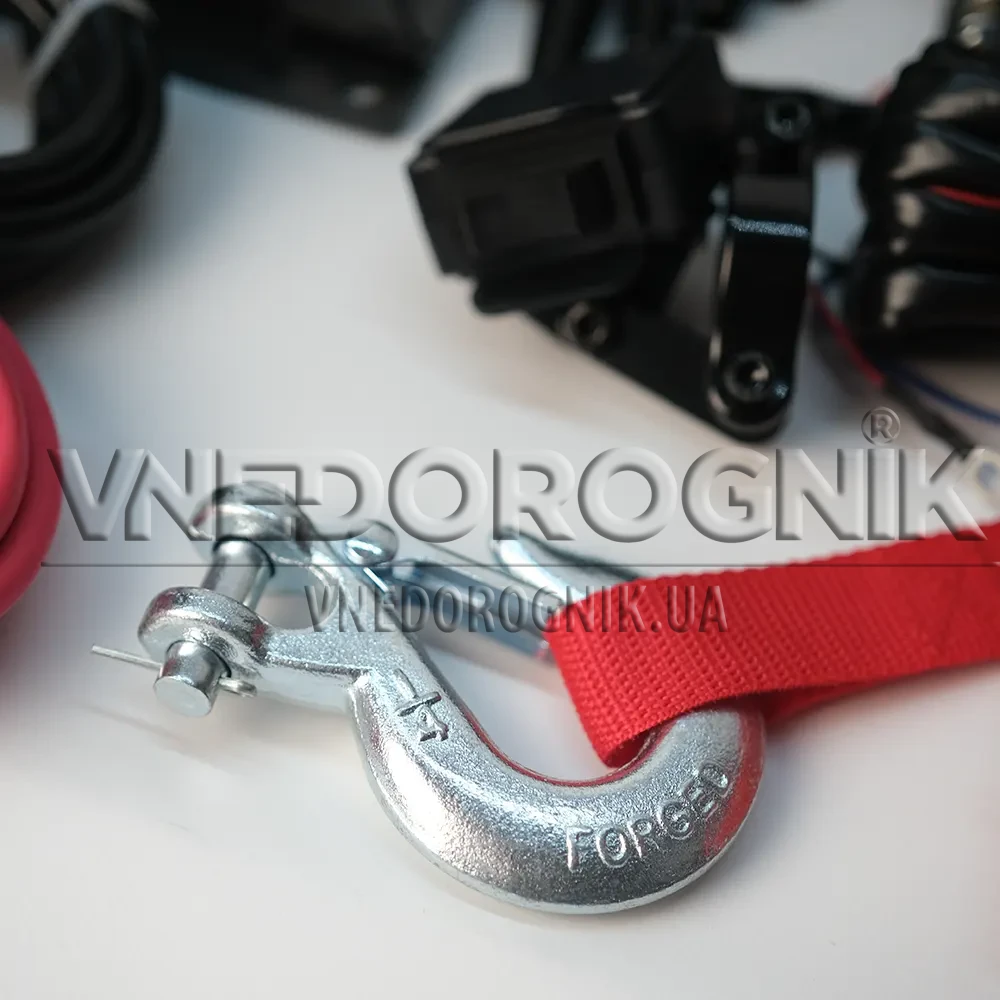

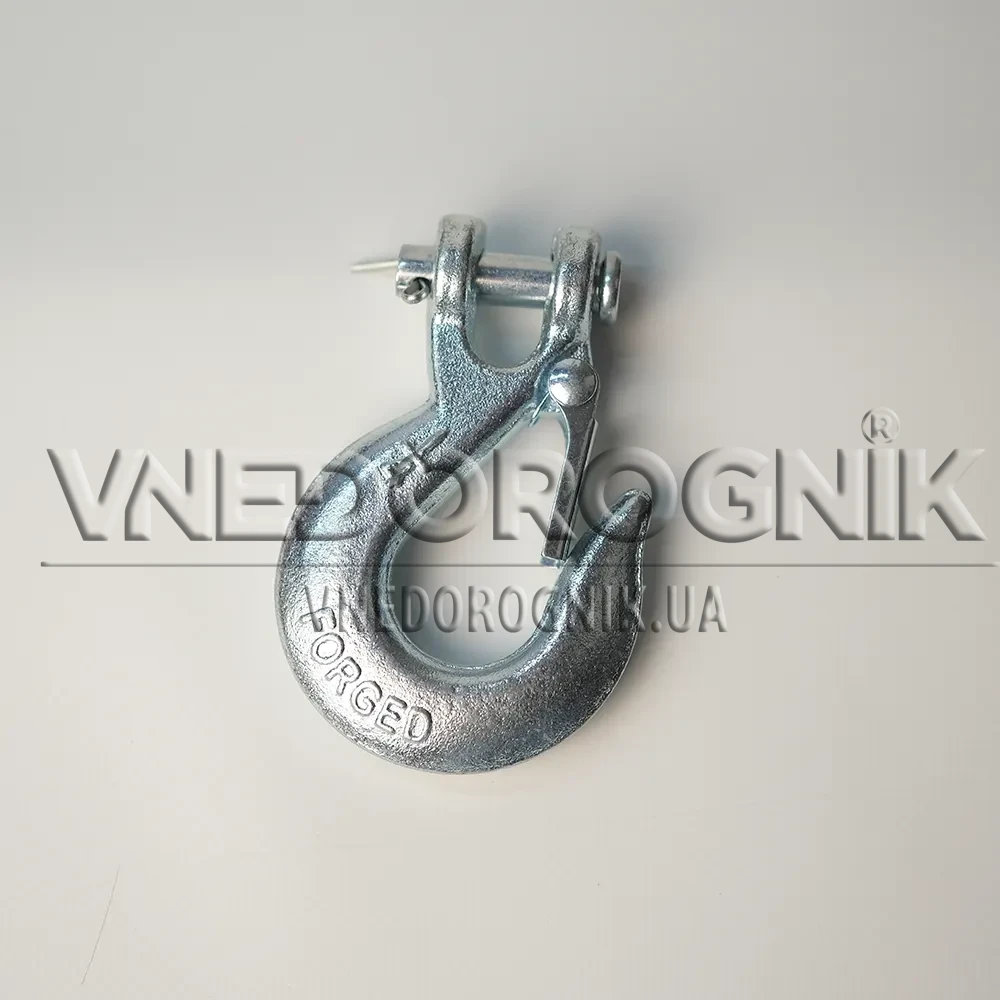

- hook;

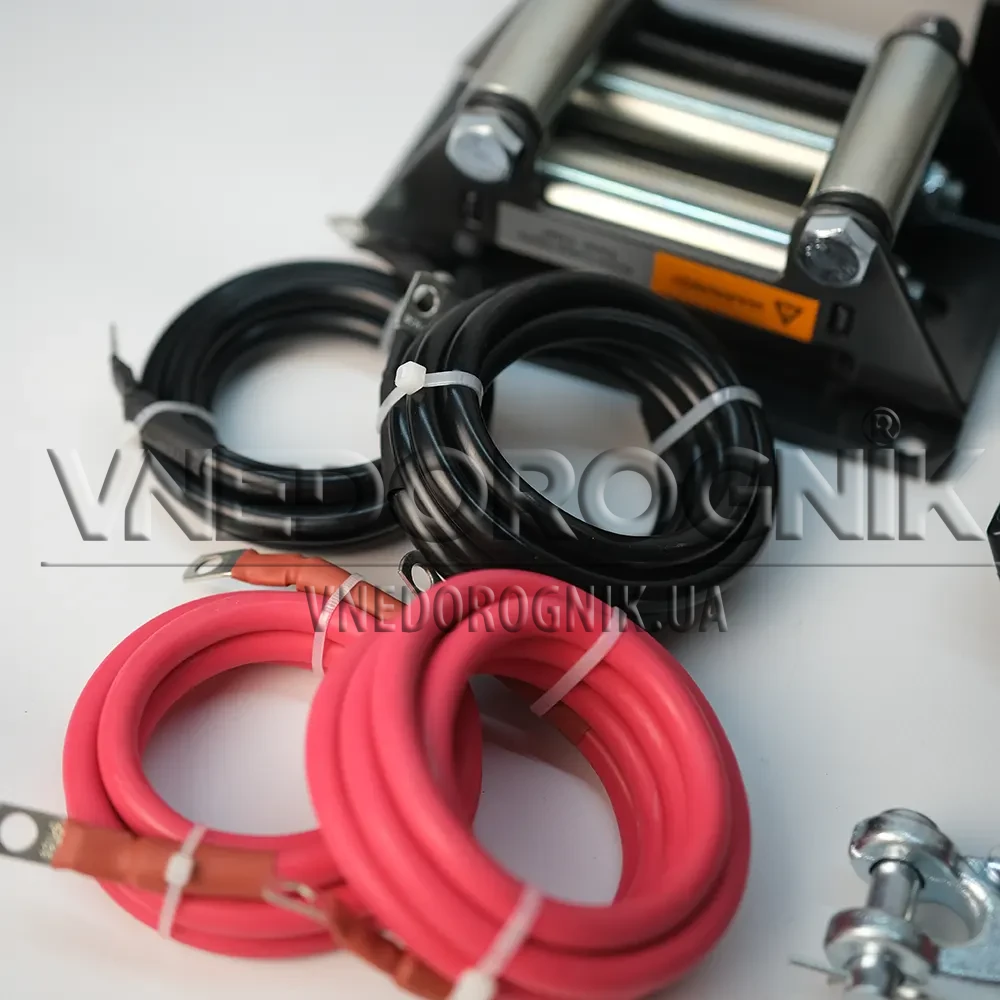

- accessories for fastening.
You can also order the same winch, only with a 52 mm longer drum of the DWH 4500 HDL model.
Cable laying speed per drum and power (first turn)
| Load level | kg | 0 | 453 | 907 | 2041 |
| Broaching speed | m/min | 6,3 | 5,3 | 4,5 | 2,1 |
| Voltage, 12 V | А | 23 | 40 | 81 | 160 |
Pulling force depending on the rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 2041 | 1612 | 1388 | 1204 | 1001 |
| Cable length on the drum | м | 2,3 | 4,9 | 8,0 | 11,4 | 15 |

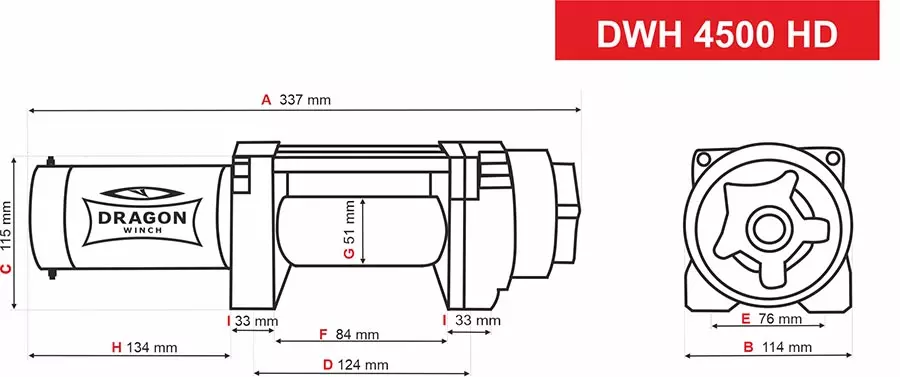

Winch dimensions (mm)
| A | Length (total) | 337 |
| B | Width (total) | 114 |
| C | Height from base to highest point | 115 |
| D | Distance between mounting holes (length) | 124 |
| E | Distance between mounting holes (width) | 76 |
| F | Internal length of the drum | 84 |
| G | Drum (diameter) | 51 |
| H | Length of the motor | 134 |
| I | Leg thickness | 33 |
