When darkness catches you by surprise

Has it ever happened that you are standing on the side of the road in the middle of the night, and the law of meanness has been fully activated? The engine stopped, the flashlight sat down, and the phone, even if it lights up, constantly falls or gets in the way, never illuminating the right place. We've all been through it. That is why we have prepared this guide so that you can solve the lighting problem once and for all and be ready for any surprises. You will learn how to install reliable engine compartment lighting on your own, which will make any nighttime car repair much easier and safer. Ready to add some light to your car? Let's go!

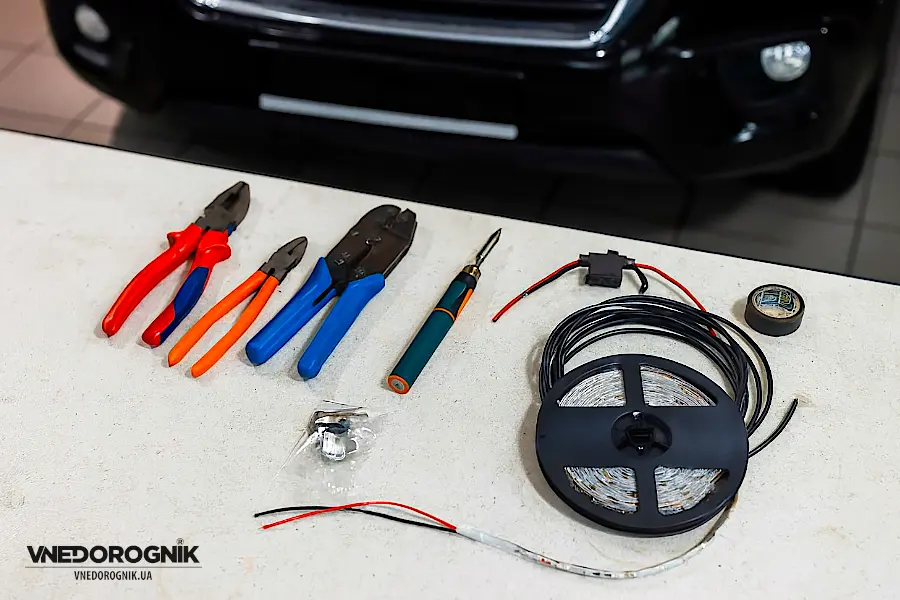

1. What you will need: we are preparing an arsenal

Before going into battle, it is important to collect the right arsenal. High-quality tools and materials are half the success and a guarantee that the new light under the hood will serve for a long time and will not fail at the crucial moment.

Here is your checklist:

• Light-emitting diode (LED) tape under the hood.A meter of high-quality tape is more than enough for a bright 12V backlight. Not economical - cheap analogues fade and peel off after the first winter.
• Toggle switchwith a rubber waterproof cap.
• Built-in fuse holder.
• Two-core wire (approximately 5 A).
• Crimper and set of terminals.At least two female terminals and two ring terminals are required.
• Soldering iron and solder.
• Insulation tape or heat shrink.
• Side cutters and pliers.
• Brake cleaner (or degreaser) and a clean cloth.

When everything is ready, let's proceed to the installation!

2. Step-by-step installation: from theory to result

Installing a light under the hood is easier than it seems. The main thing is to do everything consistently and carefully.

2.1. Connection diagram (correct and safe)

Safety recommendation:in the 12 V on-board networkput the fuse and the switch in the "plus" gap, the "minus" of the tape is securely placed on the "mass" of the body. The sequence is as follows:Battery (+) → fuse holder (as close as possible to the terminal) → switch → “+” LED strips; "−" LED strips → "mass".

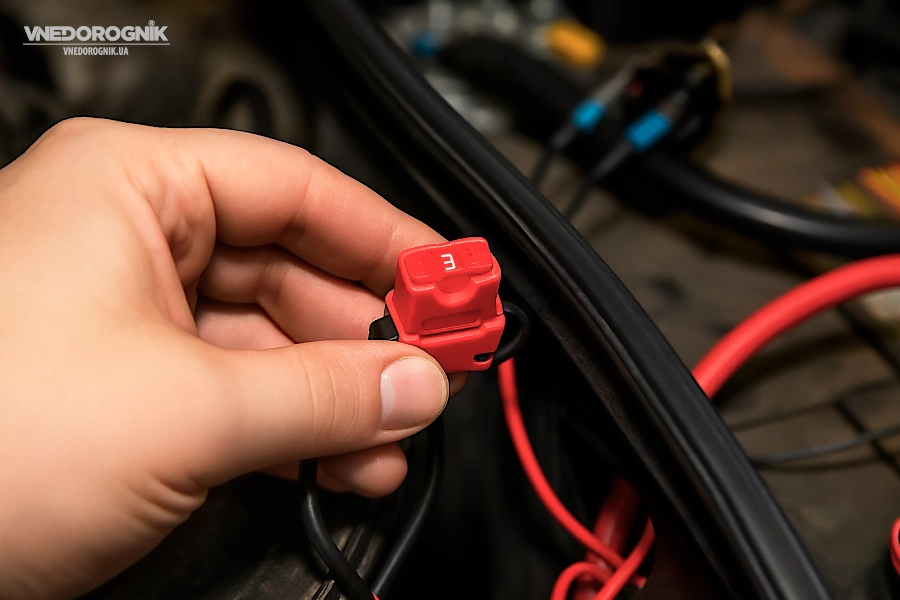

2.2. The fuse is your main defender

The fuse is always installed inpluswire and is placed as close as possible to the battery terminal. This is how you protect the entire line from a possible short circuit.

We choose the denomination so that it issmallerfor the permissible current of the wire, butbiggerfor tape consumption. For ~1 m of LED strip (<1 A), a 3 A fuse and ~5 A wire is an excellent choice.

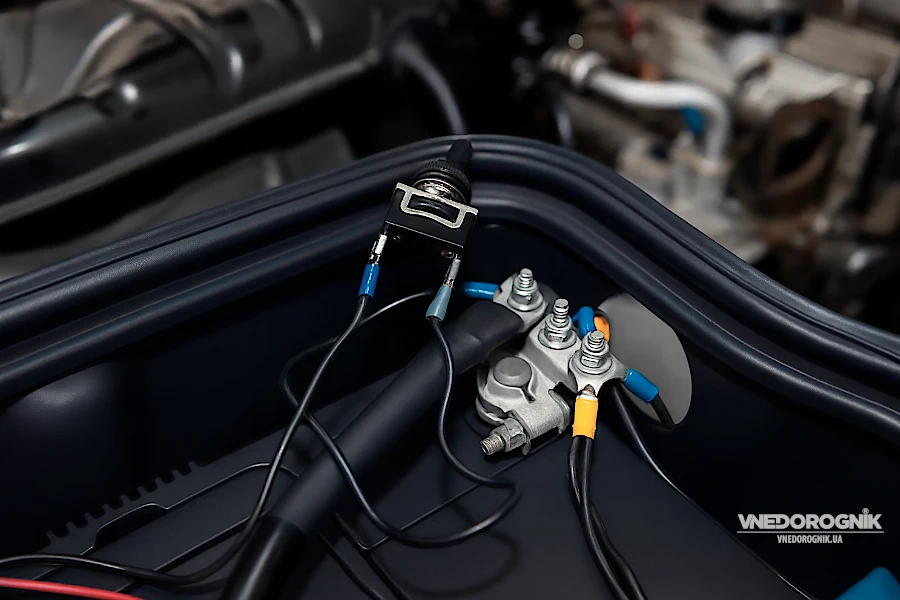

2.3. Connecting the switch

1. On the positive branch after the fuse holder, crimp the "mother" terminal and connect it to one contact of the toggle switch.
2. From the second contact of the toggle switch, lead "plus" to the LED strip.
3. We finish the "minus" of the tape on a clean bolt of the "mass" of the body or engine. For a car that often sees dirt and water, a waterproof cap on the tumbler is a must-have.

2.4. Laying wires: accuracy and protection

1. Route the harness from the battery/switch along the inner wing to the corner of the engine compartment.
2. Lift it to the hood and hide it under the stiffeners.
3. Importantly:use a protective corrugation; rubber seals in metal holes.
4. Easy fixation of sagging - with a drop of silicone sealant or clamps.

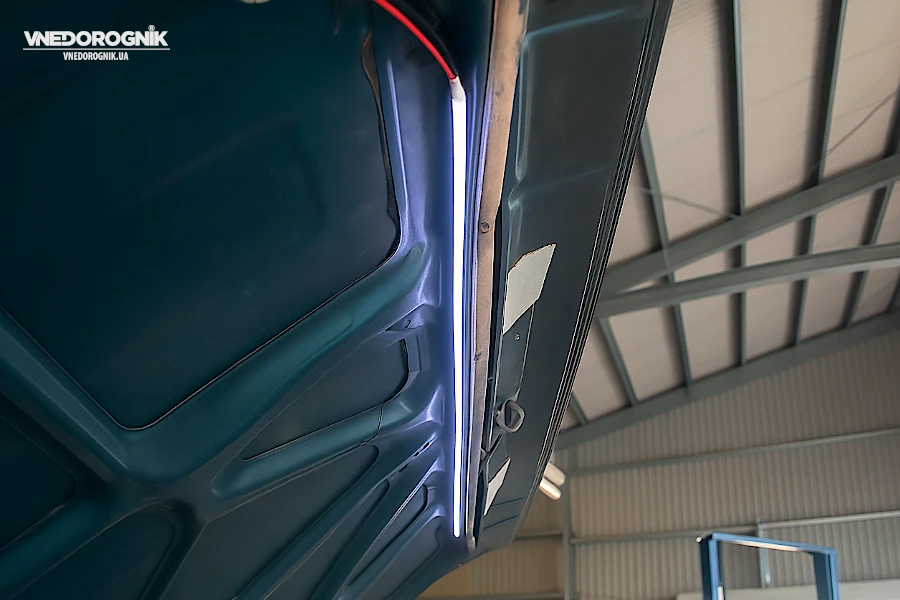

2.5. Installation and connection of the LED strip

1. Surface preparation:clean and degrease the area under the hood. The 3M adhesive base adheres to a perfectly clean surface.
2. Ration:solder "+" and "−" to the corresponding contacts of the tape. Do not forget to put on heat shrink before soldering.
3. Fastening:stick the tape tightly. An angle of ~45° often provides downward light without blinding.
4. Insulation:heat the shrink to protect the solder from moisture.

2.6. Final check

First, connect the ring terminals to the poles of the battery ("+" to plus, "−" to minus). Only after reliable installation, the fuse is inserted into the holder - this will supply power to the line. Click - and the light should work.

3. Tips and troubleshooting

• Problem 1.The fuse blows immediately after connecting to the battery (even with the light off).
  Decision:short circuit to "plus". Somewhere the insulation is damaged and the wire touches the "mass". Carefully examine the entire line.Did not becomefuse with a larger rating - find and eliminate the cause.
• Problem 2.The fuse blows when the light is turned on.
  Decision:the load is too large for the fuse rating (and possibly the wiring). Reduce the length/power of the tape or switch to a larger gauge wire and a suitable fuse.
• The golden rule:always use a fuse.
• If you have two batteries:connect the backlight to the auxiliary so as not to accidentally discharge the starter overnight.

Now you are ready for any adventure!

Congratulations! You didn't just install a light - you gained confidence on the road. No more late-night breakdowns or under-the-hood camping trips will catch you off guard.
