Home / Catalog / Exterior / Winner Electric Come -Up Gen2 Slim 12.5 Rs - 12 Volts - 5670 kg - 12500 lbs
Winner Electric Come -Up Gen2 Slim 12.5 Rs - 12 Volts - 5670 kg - 12500 lbs
0.0
no reviews
Code: 009221
Authorized dealer
1970$
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | 295059 |
| Бренд | Come-up |
| Тягове зусилля | 5 t |
| Довжина троса | 25 m |
| Напруга, вольтаж | 12 |
| Трос | Синтетический |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
COMEUP electric winch with a pulling force of 5670 kg
The high-performance winch from COMEUP Slim series is designed for use in harsh off-road racing conditions. The mechanism demonstrates high resistance to extreme operating conditions and is not afraid of water, mud or other external factors.
The 5 horsepower electric motor is powered by the car 's 12-volt battery and can withstand a load of more than 5.5 tons. A special winch switch optimizes battery utilization by preventing the battery from draining when the traction mechanism is not in use.
In the set:
- Gen2 Slim 12.5 rs winch.
- Radio remote control.
- Waterproof cable remote control 5 meters long.
- Synthetic rope with a diameter of 11 mm and a length of 25 meters;
- Hook.
- Key.
- Power cables.
The synthetic rope consists of 12 components and is highly resistant to abrasion. The robust aluminum housing can withstand 2 times the load of the winch's pulling power.
Winding speed and current consumption (1st layer of rope):
| Load, kg/lb | Winding speed, m/min | Current consumption, A (12V) |
| 0 | 7.7 | 45 |
| 907 | 3.4 | 75 |
| 1,814 | 2.5 | 160 |
| 2,722 | 2.0 | 230 |
| 3,630 | 1.7 | 300 |
| 5,670 | 0.9 | 470 |
Maximum pulling force by rope coils:
| Cable layer | Max. load, m/min | Remaining rope on the drum, m |
| 1 | 5,670 | 4.8 |
| 2 | 4,499 | 10.9 |
| 3 | 3,729 | 18.5 |
| 4 | 3,184 | 25.5 |

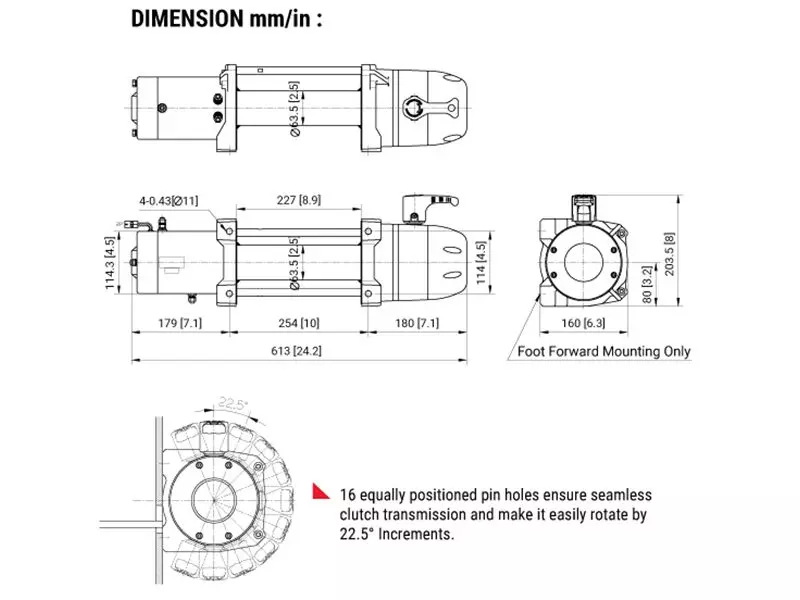

Winch dimensions, mm:
| Length | Width | Height |
| 613 | 160 | 203,5 |
Warranty
- 100% warranty service
- Warranty period for each product is individual
Exchange and return
- Within 14 days: new, unused products of proper quality
