Lazer Linear-18 0L18-Lnr

Code: 001126

(1)

+9 фото

+12 фото

Official representative in Ukraine

	Official representative in Ukraine
Article	0l18-lnr
Height	40 mm
The length of the headlight	532 mm
Deaf	62 mm

Show full spec

Price 23321 UAH

Add to comparison

Add to Wishlist

Specifications
Description
Useful links
Installation
Warranty
Payments & delivery
Videos 3
Reviews 1
%Bonuses

Specifications

Characteristics

Article	0l18-lnr
Type	Farry of far light
View	Additional headlights
The voltage range	9-32v
The life of the lamps	50,000 hours
The power of the luminous flux	6750 lm
Number of LEDs	18
Power consumed	63 W.
Power consumption (at 14.4 V)	4,4 А
Optical efficiency	92%
The ray of light	dispersed
Far light	ECE R112
Corps	rectangular
Housing material	metal
Weight, kg	1090 г.
0.25 LX Line	855 meters
0.5 LX Line	605 meters
1 LX Line	428 meters
3 LX Line	247 meters


Brand	Lazer

Dimensions

Height	40 mm
Deaf	62 mm
The length of the headlight	532 mm

Description

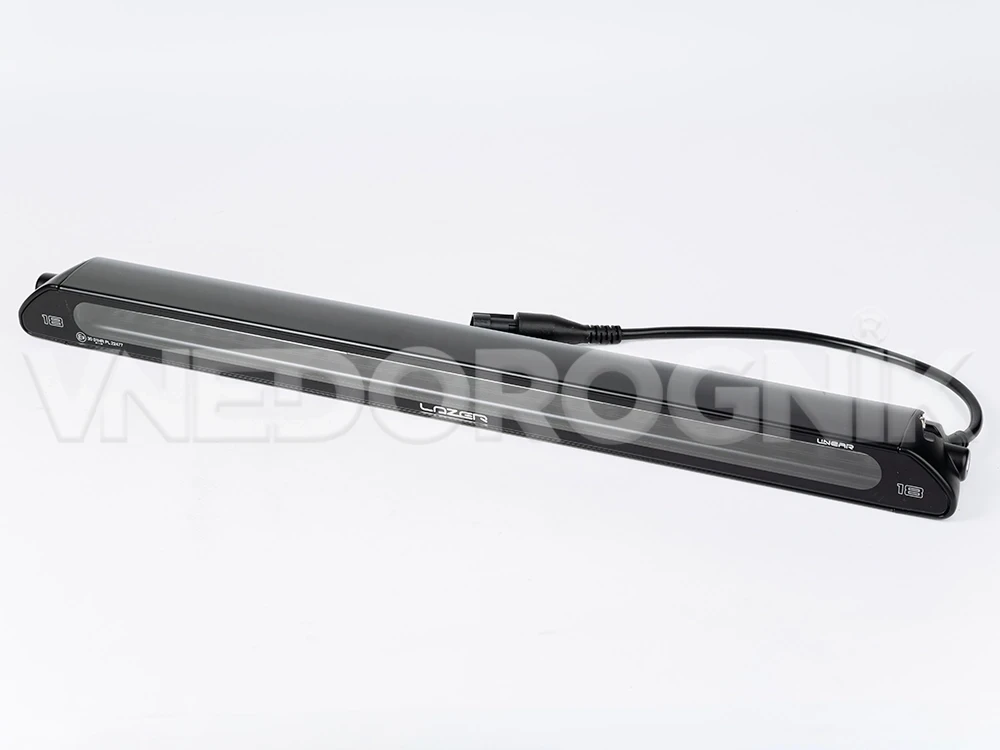

LED beam Lazer Linear-18 0L18-LNR

This LED beam is considered extremely versatile. It has a significantly strong construction. Given LazerLamps ' current advances in LED technology, the beam can provide a stable and reliable level of light output, which is definitely applicable in a wide range of tasks and for different types of machines.

With such relatively small dimensions, the unit uses highly efficient light-emitting diodes. Their color temperature is carefully selected to achieve maximum clarity of illumination. Thanks to this calibration, the eyes do not feel fatigue or strain, which happens when using LEDs with a higher color gamut.

The luminous flux reaches 6750 lumens, and the power consumption is 63 W (at 14.4 V - 4.4 A). A consistently high level of light output is maintained by the innovative Matrix balanced cooling system.

Useful links

Return to other ice beams. See all additional optics. View all optics.

Installation


Instructions for installation and connection lazerlamps Linear-18 Std	Product Information Map lazerlamps Linear-18 STD	ECE R10 Certificate Lazerlamps Linear-18 Std

care instructions lazerlamps Linear-18 Std	ECE Certificate lazerlamps Linear-18 Std
