Quadrocycle winch Electric Dragon Winch dwh 4500 HD

Code: 001364

+15 фото

+18 фото

Discounts

Official representative in Ukraine

	Official representative in Ukraine
Article	dw12003
Traction effort	2 t
The length of the cable	15 m
Вольтаж	12

Show full spec

Ready to ship 13586 UAH 12383 UAH

Add to comparison

Add to Wishlist

Specifications
Description
Useful links
Installation
Payments & delivery
Reviews 0

Specifications

Characteristics

Article	dw12003
The drive of the winch	Electric
Traction effort	4500 lbs / 2041 кг
The length of the cable	15 m

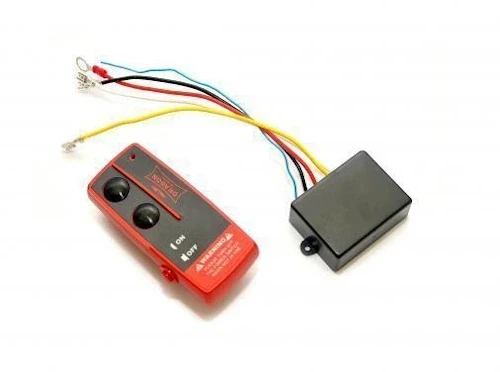

Remote control	The remote is conductive + wireless
Traction effort	2 t
Вольтаж	12
Трос	Стальной
Weight	11,4 кг
Dimensions	337 мм х 114 мм х 115 мм
Gear box	3th grade planetary
Tormosis	automatic
Mounting holes	124 мм х 76 мм
Transmitting number	138:1
Engine	1.9 hp


Brand	Dragon Winch

Description

Electric winch for ATV DWH 4500 HD from the manufacturer Dragon Winch

Thewinches for ATVs of the Highlander series are specially designed for use in off-road sports. The robust design and hermetic seals allow the equipment to be used even during extreme driving.

The device, equipped with a 1.9 hp electric motor, is powered by a battery (12 V). The maximum load on the Dragon Winch is 2041 kg.

The three-stage planetary gearbox gearbox ensures smooth cable movement. The automatic brake reliably fixes the load in the desired position.

Included:

DWH 4500 HD winch;
cable length 15 m
support platform
control unit;
control panel;
hook;
accessories for fastening.

You can also order the same winch, only with a 52 mm longer drum of the DWH 4500 HDL model.

Cable laying speed per drum and power (first turn)

Load level	kg	0	453	907	2041
Broaching speed	m/min	6,3	5,3	4,5	2,1
Voltage, 12 V	А	23	40	81	160

Pulling force depending on the rope turn

Turn		1-й	2-й	3-й	4-й	5-й
Pulling force	kg	2041	1612	1388	1204	1001
Cable length on the drum	м	2,3	4,9	8,0	11,4	15

Winch dimensions (mm)

купити лебідку на квадроцикл DWH 4500 HDL

A	Length (total)	337
B	Width (total)	114
C	Height from base to highest point	115
D	Distance between mounting holes (length)	124
E	Distance between mounting holes (width)	76
F	Internal length of the drum	84
G	Drum (diameter)	51
H	Length of the motor	134
I	Leg thickness	33
