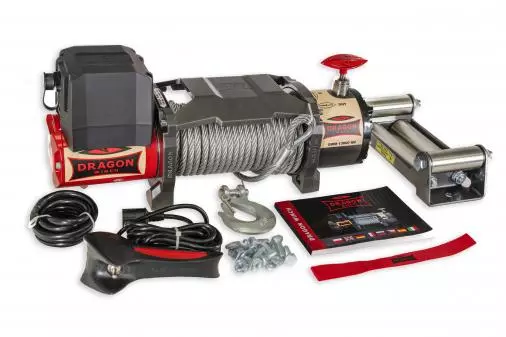

Winch Automobile electric Dragon Winch DWM 13000 HD
0.0
no reviews
Code: 009381
Official representative
24846₴
Delivery
Pickup: Vinnytsia, Yukivka 109b. *Delivery available via SAT, Delivery, and Ukrposhta, check with manager
Dmytro Hrankin
Not sure if this product is right for you? Get expert consultation
Oleksandr Kyrychenko
Not sure if this product is right for you? Get expert consultation
Liliia Bernatska
Not sure if this product is right for you? Get expert consultation
Anna Shakhrai
Not sure if this product is right for you? Get expert consultation
Zeleniuk Andrii
Not sure if this product is right for you? Get expert consultation
Yurii Petrovskyi
Not sure if this product is right for you? Get expert consultation
Yurii Roshchuk
Not sure if this product is right for you? Get expert consultation
Specification
| SKU | dw11007 |
| Бренд | Dragon Winch |
| Тягове зусилля | 6 ton |
| Довжина троса | 20 m |
| Трос | Стальной |
| Пульт дистанційного управління | The remote is conductive + wireless |
| Привід лебідки | Electric |
Related products
Ready to ship
Electric car winch Dragon Winch DWM 13000 HD
The Dragon Winch electric car winch is a powerful equipment whose task is to tow a car and horizontal movement of objects of different weights and shapes. Its benefits are positively assessed by fans of traveling off-road, professional participants in off-road competitions, as well as employees of the Ministry of Emergencies, utilities and tow trucks.
It is equipped with a noticeably productive engine, the power of which reaches 6.8 hp. This is enough to develop a pull of 6 tons already at the starting turn. The Dragon Winch car winch is based on a robust housing with a cable drum, electric drive, gearbox and 20-meter cable.
The winch is switched on when connected to a 12/24 V battery. Its attachment is not limited to a place inside the car - any surface with a stable base is suitable. It can be operated remotely via a remote control.
Speed of cable laying on the drum and power (first turn)
| Load level | kg | 0 | 1814 | 3629 | 5897 |
| Broaching speed | m/min | 5,9 | 4,4 | 2,8 | 0,8 |
| Voltage, 12 V | А | 58 | 158 | 314 | 448 |
| Voltage, 24 V | А | 35 | 89 | 178 | 245 |
Pulling force depending on the wire rope turn
| Turn | 1-й | 2-й | 3-й | 4-й | 5-й | |
| Pulling force | kg | 5897 | 4658 | 4009 | 3463 | 2889 |
| Cable length on the drum | м | 4,9 | 11 | 17,8 | 26 | 30 |
Overall dimensions of the winch (mm)
| A | Length (total) | 537 |
| B | Width (total) | 166 |
| C | Height from base to highest point | 228 |
| D | Distance between mounting holes (length) | 254 |
| E | Distance between mounting holes (width) | 114 |
| F | Internal length of the drum | 224 |
| G | Drum (diameter) | 64 |
| H | Length of the motor | 155 |
| I | Length of the transmission | 118 |
| J | Height from the base to the surface of the gear edge | 152 |
| K | Height from base to surface of gear lever edge | 210 |
| L | Thickness of the leg | 35 |
